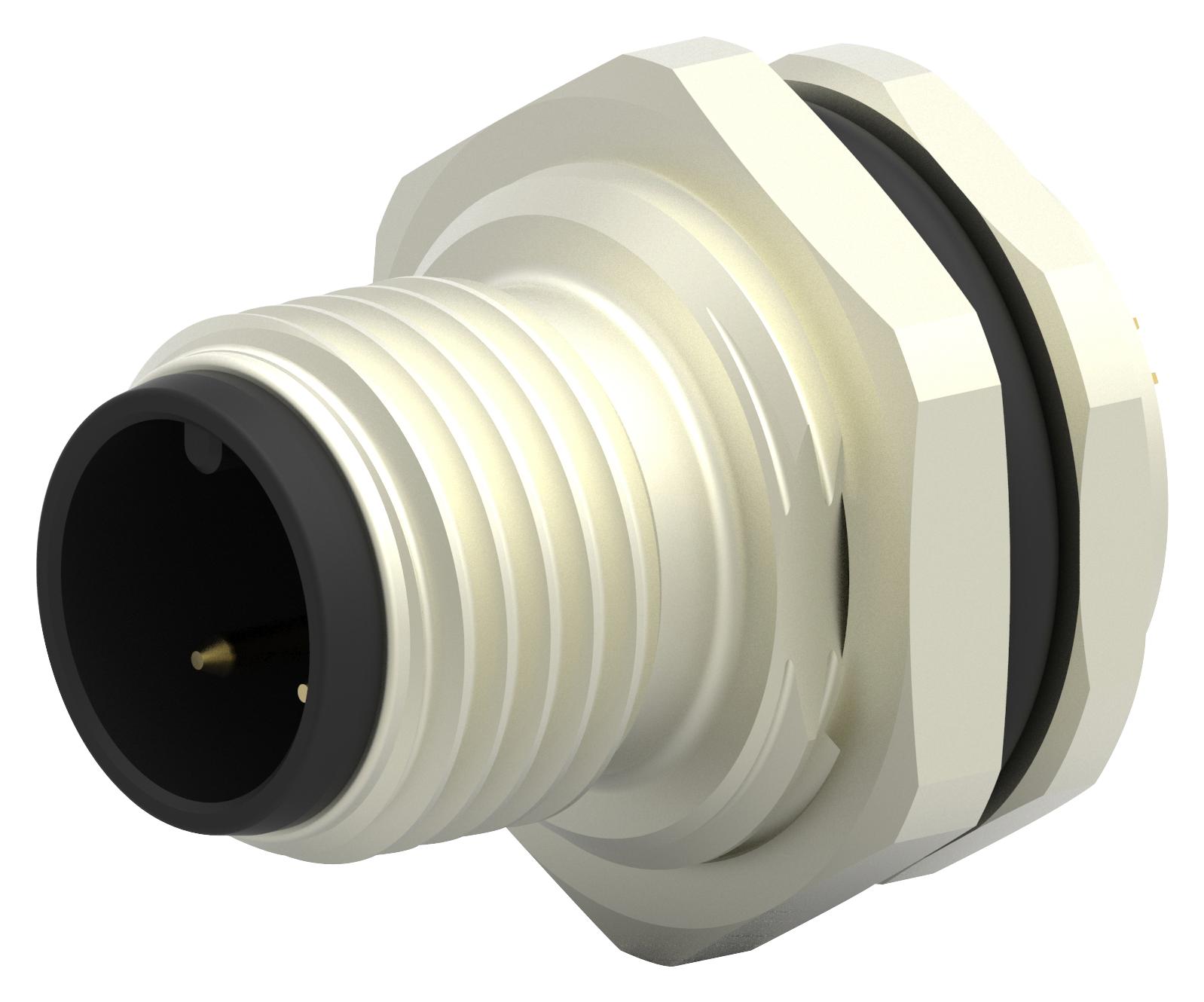

TE CONNECTIVITY T4130012031000 Industrial M12 Connector
The M12 connector is a sealable, 3-position circular connector designed for industrial wiring applications. It features a wire-to-panel system with a metal shell and a silicone seal to ensure IP67 protection against dust and water. Rated for 4A maximum current, it is suitable for signal transmission in harsh environments. The connector supports a temperature range from -40 to 85°C and is compliant with EU RoHS and REACH standards. Its compact design with PCB mounting options makes it ideal for automation and industrial control systems.
TE CONNECTIVITY T4130012031000 Industrial M12 Connector Specifications:
- Connector System: Wire-to-Panel
- Number of Positions: 3
- Sealable: Yes
- Contact Current Rating (Max): 4A
- Operating Voltage: 250 VAC
- Shell Type: Metal
- Shell Plating Material: Nickel
- Insulation Material: Polyamide 66 GF25
- Contact Type: Pin
- Wire Size: 18-24 AWG
- Environmental Protection: IP67
- Temperature Range: -40 to 85°C
- Compliance: EU RoHS, REACH
- Water Sealing Level: IP67
- Material: Silicone, Elastomer Sealed
- Housing Material: Metal
- Dimensions: Suitable for PCB mounting, compact size
- Mechanical Attachment: Solder connections
Buy the TE 3001 2031 – Reliable Circular Connectors for Industrial Applications
Enhance your industrial wiring setup with the TE M12 Connector, featuring a sealable 3-position design, IP67 protection, and a 4A current rating. Perfect for signal transmission in harsh environments, it supports PCB mounting with a robust metal shell and silicone sealing for environmental protection. Compliant with European RoHS and REACH standards, this connector ensures safety and durability across industrial automation, control systems, and machinery. Easy to install and dependable, it’s the ideal choice for demanding applications requiring reliable connectivity.
Order your TE Series T4130012031 M12 Connector today and enhance your industrial wiring with this durable, sealable, and high-performance circular connector.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4130012031000?
You can click on the BUY or RFQ button to purchase T4130012031000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4130012031000?
You can download the T4130012031000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4130012031000?
TE CONNECTIVITY
