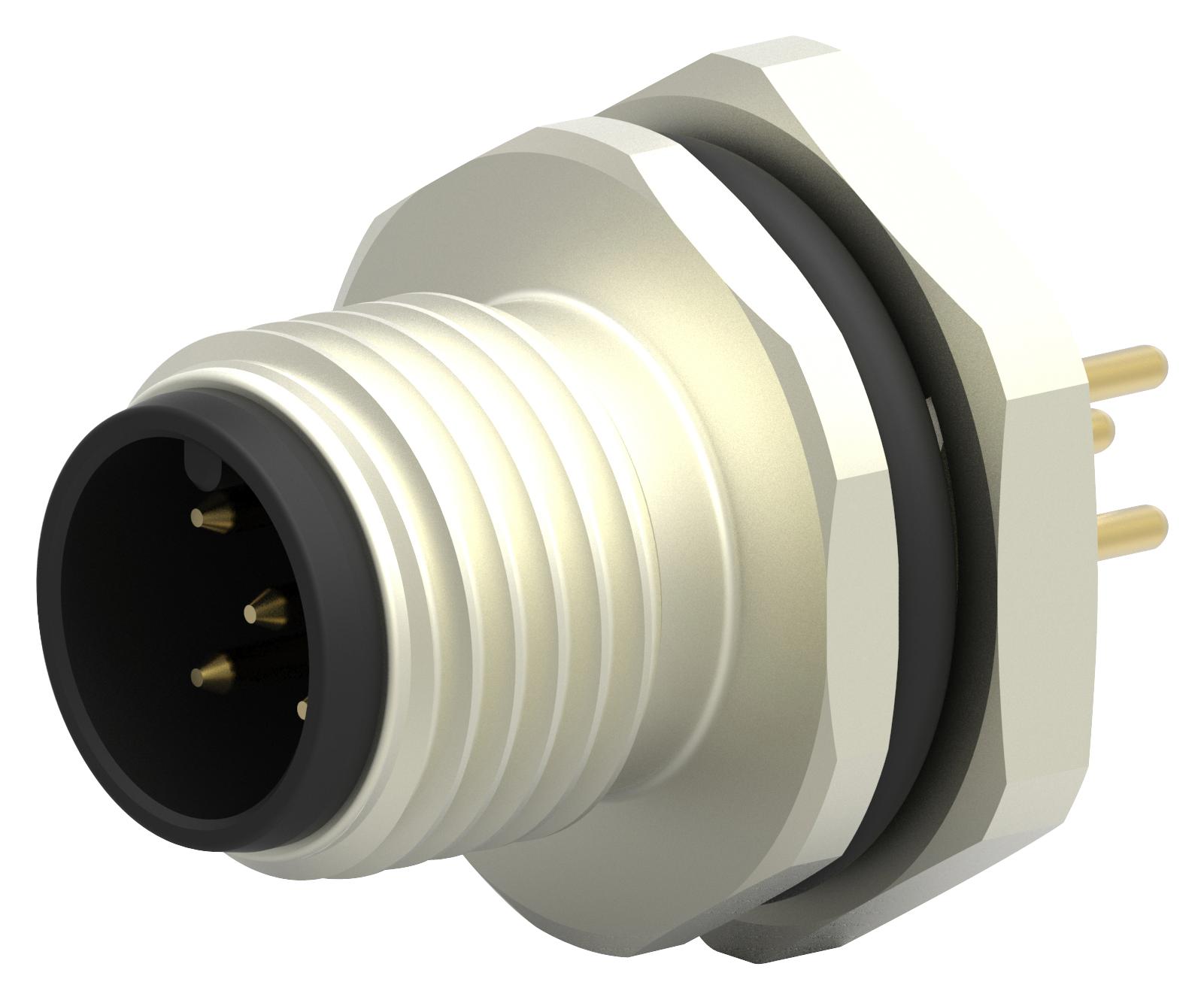

TE CONNECTIVITY T4142012051000 M12 Connector
The M12 Connector is a versatile circular connector designed for wire-to-panel connections with five positions. Featuring a sealable design and PCB termination, it supports signal applications with a high contact current rating of 4A. Made of durable materials including nickel-plated shells and polyamide insulators, it offers IP67 environmental protection against dust and water, and operates within a temperature range of -40°C to 85°C. Suitable for industrial automation, the connector ensures reliable electrical connectivity in harsh conditions, complying with UL, RoHS, and REACH standards for safety and environmental compliance.
TE CONNECTIVITY T4142012051000 M12 Connector Specifications:
- Connector Type: Circular, Sealable, Wire-to-Panel
- Number of Positions: 5
- Current Rating: 4A
- Voltage: 60 VAC
- Material: Nickel-plated shell, Polyamide 66 GF25 insulator
- Environmental Protection: IP67 (dust and water resistant)
- Operating Temperature Range: -40°C to 85°C
- Shell Size: Standardized size for M12 connectors
- Wire Size: 18-24 AWG
- Mating Retention: Threaded coupling
- Mating Alignment: Keyed with polarizations
- Certifications: UL, RoHS, REACH compliance
- Insulation Material: Polyamide 66 GF25
- Sealing Material: Silicone and elastomer seal
- Shell Plating: Nickel
- Application: Signal transmission, industrial automation
- Durability: 100 cycles
- Environmental Seal: IP67, waterproof and dustproof
Buy the Buy TE M12 Connector Part Number T4142012051 Online
Order the TE M12 Connector with five contacts designed for robust signal transmission in industrial environments. Featuring a sealed IP67-rated body, it ensures protection against dust and water ingress. Suitable for PCB termination, with a 4A current capacity and operating within -40°C to 85°C, it supports demanding applications. Made with nickel-plated shells and polyamide insulators, it provides durability and reliable electrical performance. Purchase online today for quick delivery and precision engineering ideal for automation, machinery, and control systems.
Get TE M12 Connector part number T4142012051 today—built for industrial automation, reliable signal connection, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4142012051000?
You can click on the BUY or RFQ button to purchase T4142012051000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4142012051000?
You can download the T4142012051000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4142012051000?
TE CONNECTIVITY
