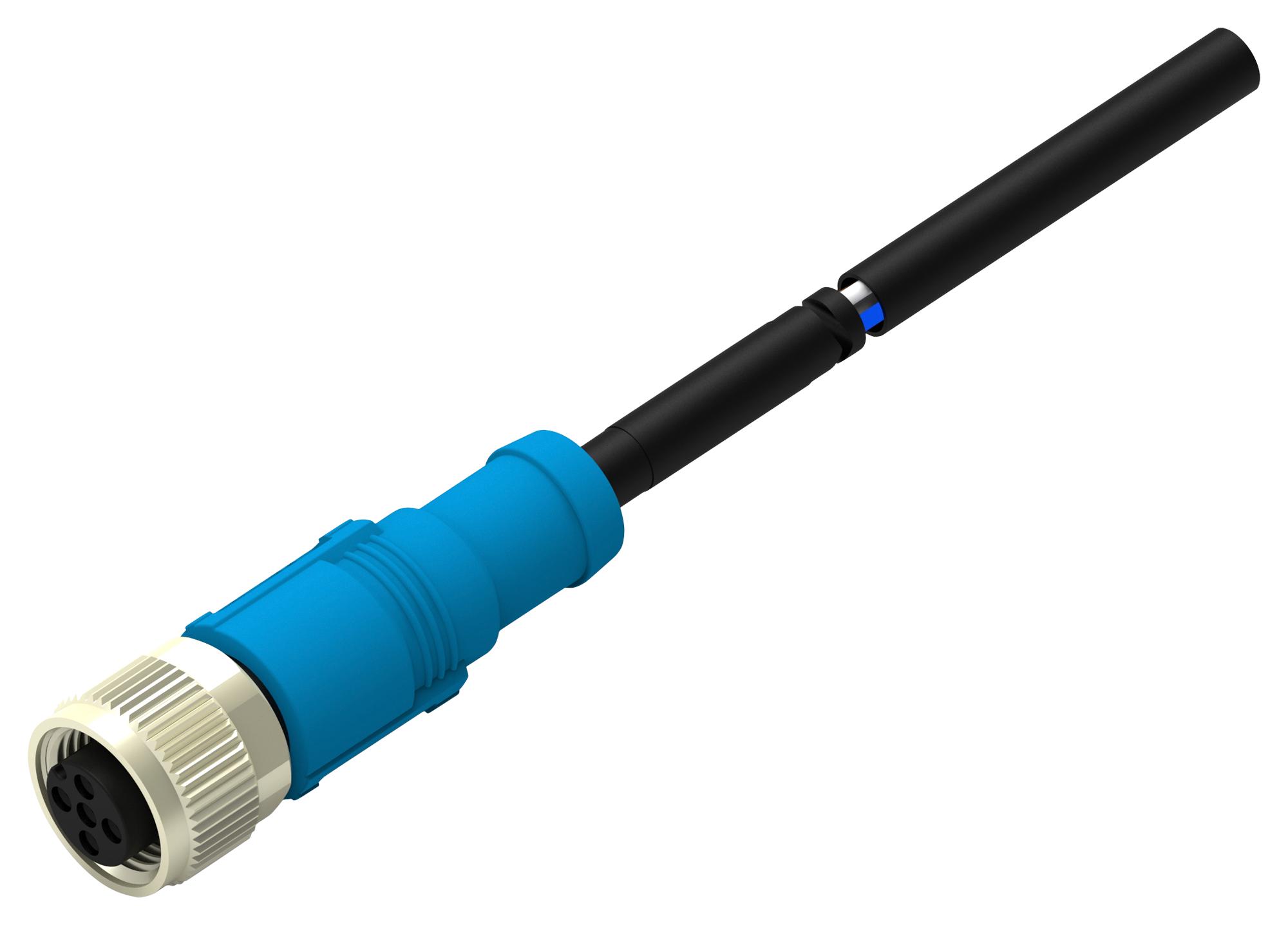

TE CONNECTIVITY T4151310005003 Sensor Cable Assembly
The M8/M12 Cable Assembly designed for sensor and actuator connections features 5 positions, a receptacle connector type, and a straight configuration. Manufactured with copper alloy conductors and a black PVC jacket, it supports up to 60 VDC. Suitable for industrial automation, this cable assembly is field serviceable, environmentally protected, and compliant with RoHS and ELV directives. It offers easy installation, high current capacity of 4A, and an overall length of 1500 mm, making it ideal for reliable data and power transmission in sensor/actuator applications.
TE CONNECTIVITY T4151310005003 Sensor Cable Assembly Specifications:
- Number of positions: 5
- Connector type: Receptacle
- Assembly type: M12 Pigtail
- Cable jacket color: Black
- Cable type: Copper Alloy
- Cable exit angle: Straight
- Conductor material: Copper Alloy
- Wire size: 22 AWG
- Cable length: 1500 mm
- Operating voltage: 60 VDC
- Current rating: 4A
- Environmental protection: Yes
- Mounting angle: Straight
- Housing material: GF Nylon
- Cable assembly configuration: Single Ended
- Field serviceable: Yes
- Compliance: RoHS, ELV, China RoHS 2
- Mechanical attachment: Screw & Hole Thread
- Contacts: M12
- Cable exit angle: Straight
Buy the TE T4151310005 – Reliable M12 Sensor Cable Assembly for Industrial Applications
Order the TE Sensor Cable Assembly with 5 positions and M12 receptacle connector today. Designed for seamless sensor and actuator connections, it features copper alloy conductors, a black PVC jacket, and supports operating voltages up to 60 VDC. With a length of 1500 mm, field serviceability, and compliance with RoHS and ELV directives, it offers reliable data transmission, easy installation, and long-lasting durability. Perfect for industrial automation systems, this cable ensures optimal performance and quick procurement.
Get TE T4151310005 today—built for precision, durability, and seamless sensor and actuator integration in industrial environments.
