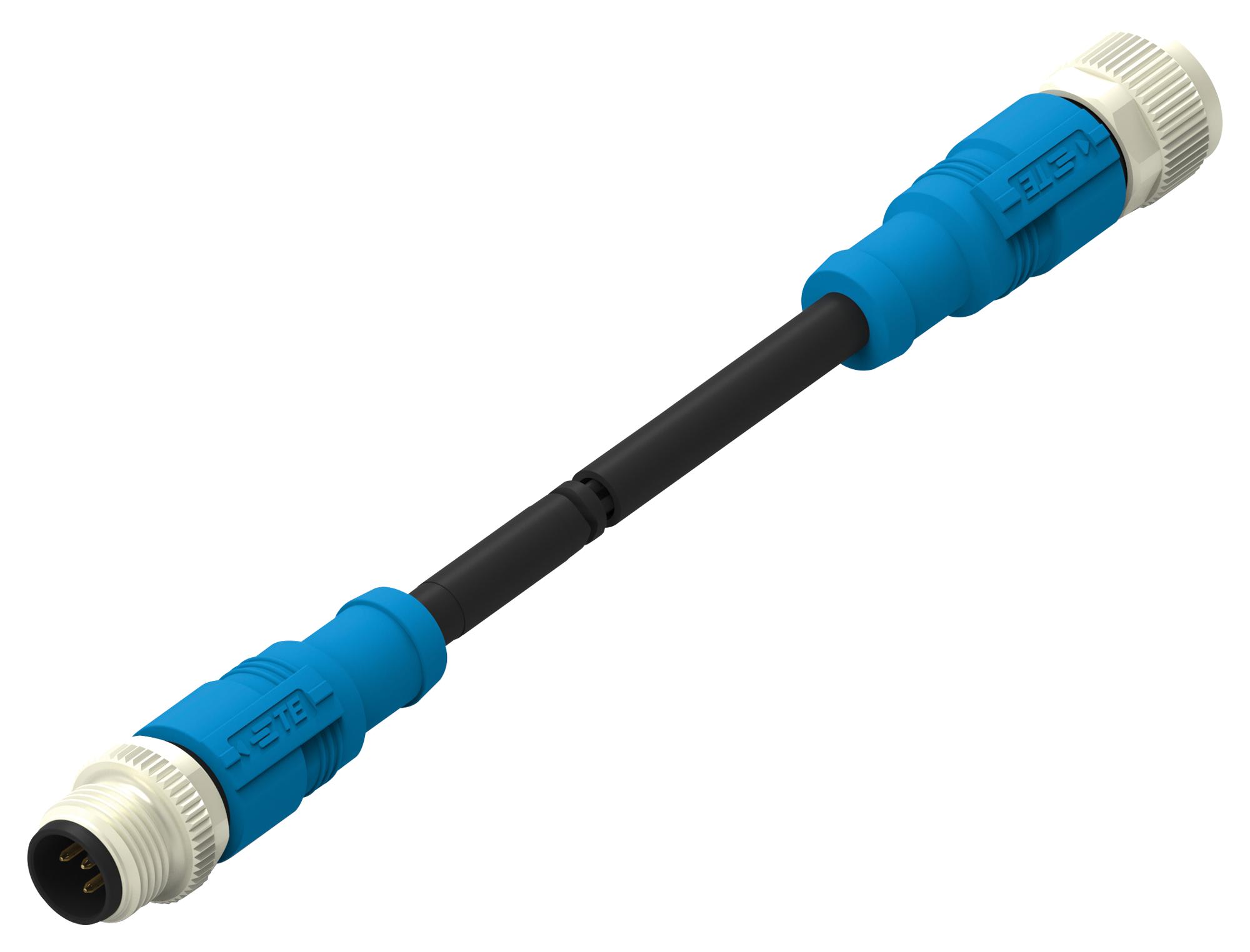

TE CONNECTIVITY T4162113005001 Sensor/Actuator Cable Assembly
The Sensor/Actuator M8M12 cable assemblies offer rugged, reliable connections designed for industrial environments and harsh conditions. Featuring IP67 ratings for dust and water resistance, these assemblies include shielded and non-shielded options with PVC or PUR sheathing. They are available in various lengths from 0.5M to 10M and configurations such as single-ended, double-ended, angled, and straight. Suitable for automation, robotics, and machine tools, these assemblies ensure durability, electromagnetic protection, and minimal downtime, meeting international standards including UL and IEC specifications.
TE CONNECTIVITY T4162113005001 Sensor/Actuator Cable Assembly Specifications:
- Protection: IP67 dust and water ingress protection
- Cable Types: PVC or PUR sheathing, shielded & unshielded
- Length Options: 0.5m, 1m, 1.5m, 3m, 5m, 7m, 10m
- Mechanical Durability: 100 cycles
- Temperature Ratings: PVC fixed -40°C to +80°C, flexible -25°C to +80°C; PUR fixed -10°C to +80°C, flexible -5°C to +80°C
- Electrical Ratings: M12 - 250V (<4 way), 60V (5 way), 30V (25 way); MB - 60V (3 way), 30V (4&5 way)
- Current Ratings: M12 (2-8 ways) - 2A to 4A, M8/MB - 3A
- Materials: Brass contacts with gold plating, PA housing, silicone O-ring, stainless steel spring, TPU over-molding
- Standards: UL2238, IEC 61076-2-101, IEC 61076-2-104, IEC 60512, IEC 60529
- Configuration options: Single-ended, double-ended, angled, straight
- Cable Conductor: 22-24 AWG, with shield options including foil, drain, and braid
- Temperature Range: As specified per sheath material and configuration
Buy the Brandname M8M12 – Reliable Sensor and Actuator Cables for Industrial Applications
Order Brandname M8M12 cable assemblies online today for versatile, durable, and quick-connect solutions tailored for industrial automation, robotics, and harsh environment applications. These assemblies are designed for reliable performance with IP67 ratings, shielded and unshielded variants, and a range of lengths from 0.5M to 10M. Crafted with premium materials like brass, PA, and TPU, they withstand extreme temperatures, electromagnetic interference, and mechanical stress. Ensure continuous operation, reduce downtime, and simplify your wiring needs by purchasing from our comprehensive online selection.
Buy Brandname M8M12 cable assemblies now and experience unmatched durability, environmental protection, and reliable connectivity in harsh industrial environments.
