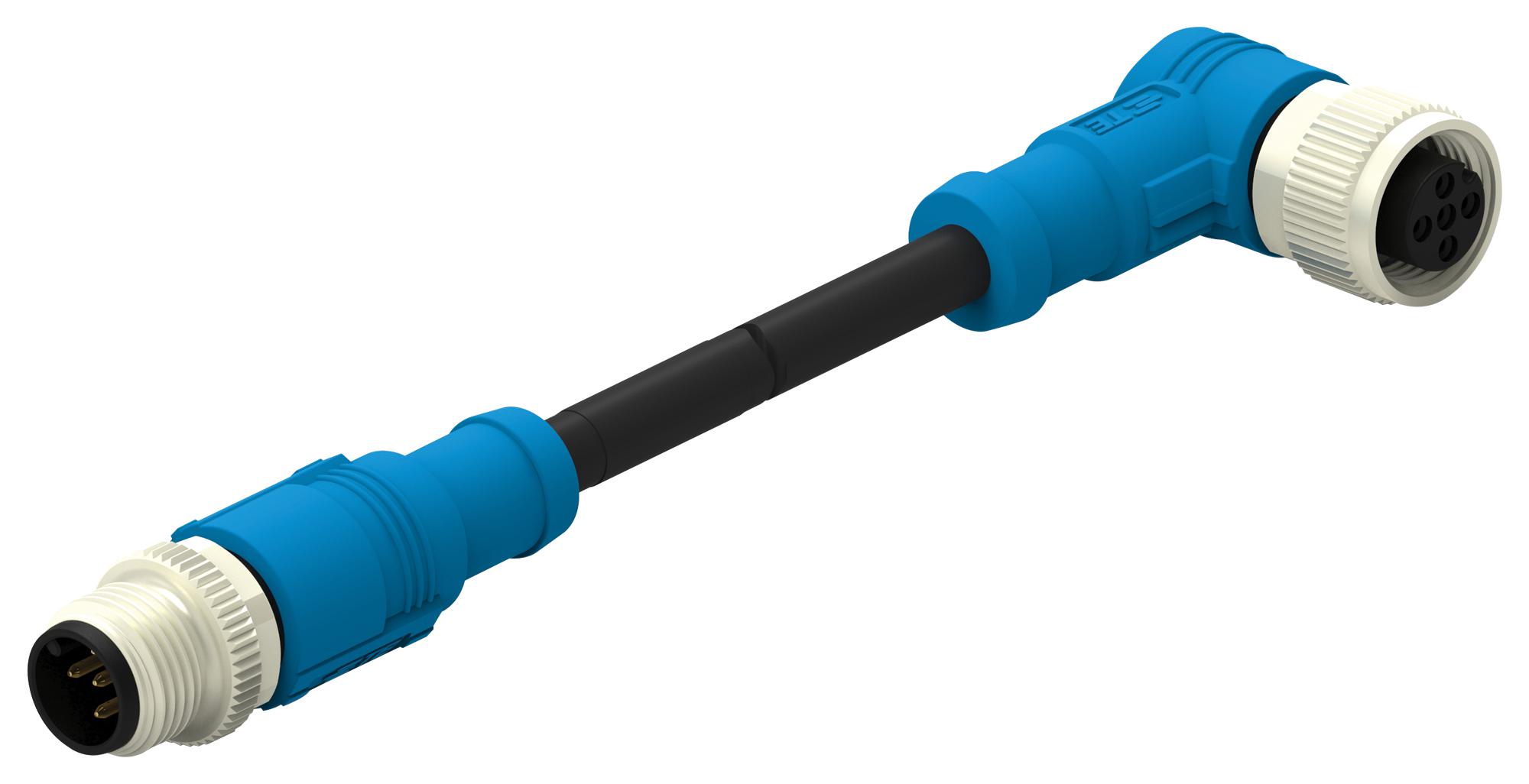

TE CONNECTIVITY T4162114005004 Sensor and Actuator Cable Assembly
The Sensor/Actuator M8M12 cable assemblies are durable, IP67-rated solutions designed for industrial and harsh environments, including robotics, machinery, and automation systems. These assemblies feature shielded or unshielded configurations with PVC or PUR sheathing, suitable for high-temperature resistance and mechanical stress. Available in multiple lengths from 0.5 to 10 meters, they support various connections such as M8 and M12, single-ended or double-ended, straight or angled, ensuring robust, reliable connectivity across applications like automation, process control, and electronics manufacturing. TE’s quick-turn manufacturing reduces downtime and provides customized options to meet specific project demands.
TE CONNECTIVITY T4162114005004 Sensor and Actuator Cable Assembly Specifications:
- Protection: IP67 for dust and water resistance
- Cable Sheathing: PVC or PUR
- Lengths Available: 0.5m, 1m, 1.5m, 3m, 5m, 7m, 10m
- Connection Types: M8 and M12, single-ended or double-ended, straight or angled
- Operational Temperature: PVC fixed -40°C to +80°C, flexible -25°C to +80°C; PUR fixed -10°C to +80°C, flexible -5°C to +80°C
- Voltage Ratings: M12 up to 250V, 6OV for 5 way, 30V for 25 way; M8 configurations support up to 30V
- Current Ratings: M12 A coding 2-8 ways support 2A-4A, M8 3A
- Materials: Brass, Nickel plating, Silicon rubber O-rings, Stainless steel springs, TPU over-molding, PA housing
- Standards: UL2238, IEC 61076-2-101, IEC 61076-2-104, IEC 60512, IEC 60529
- Temperature Tolerance: Fixed -40°C to +80°C (PU), -10°C to +80°C (PVC); Flexible -5°C to +80°C (PU), -25°C to +80°C (PVC)
Buy the Sensor and Actuator Cable Series M8M12: T4162114005004
Purchase the TE Sensor and Actuator Cable Assembly Series M8M12 today for high-quality, IP67-rated, shielded and unshielded cable solutions suited for robotics, machinery, and industrial automation. These assemblies are engineered to withstand extreme temperatures, mechanical stress, and harsh environments, ensuring robust connectivity and minimizing downtime. Available in various lengths and configurations, they provide flexible, reliable connections to sensors, actuators, and control systems across industries. Simplify your setup with TE’s quick-turn, customizable cable assemblies designed for maximum durability and performance in demanding conditions.
Order your TE Sensor and Actuator Cable Series M8M12 today and ensure your industrial connections remain reliable in even the harshest environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4162114005004?
You can click on the BUY or RFQ button to purchase T4162114005004 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4162114005004?
You can download the T4162114005004 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4162114005004?
TE CONNECTIVITY
