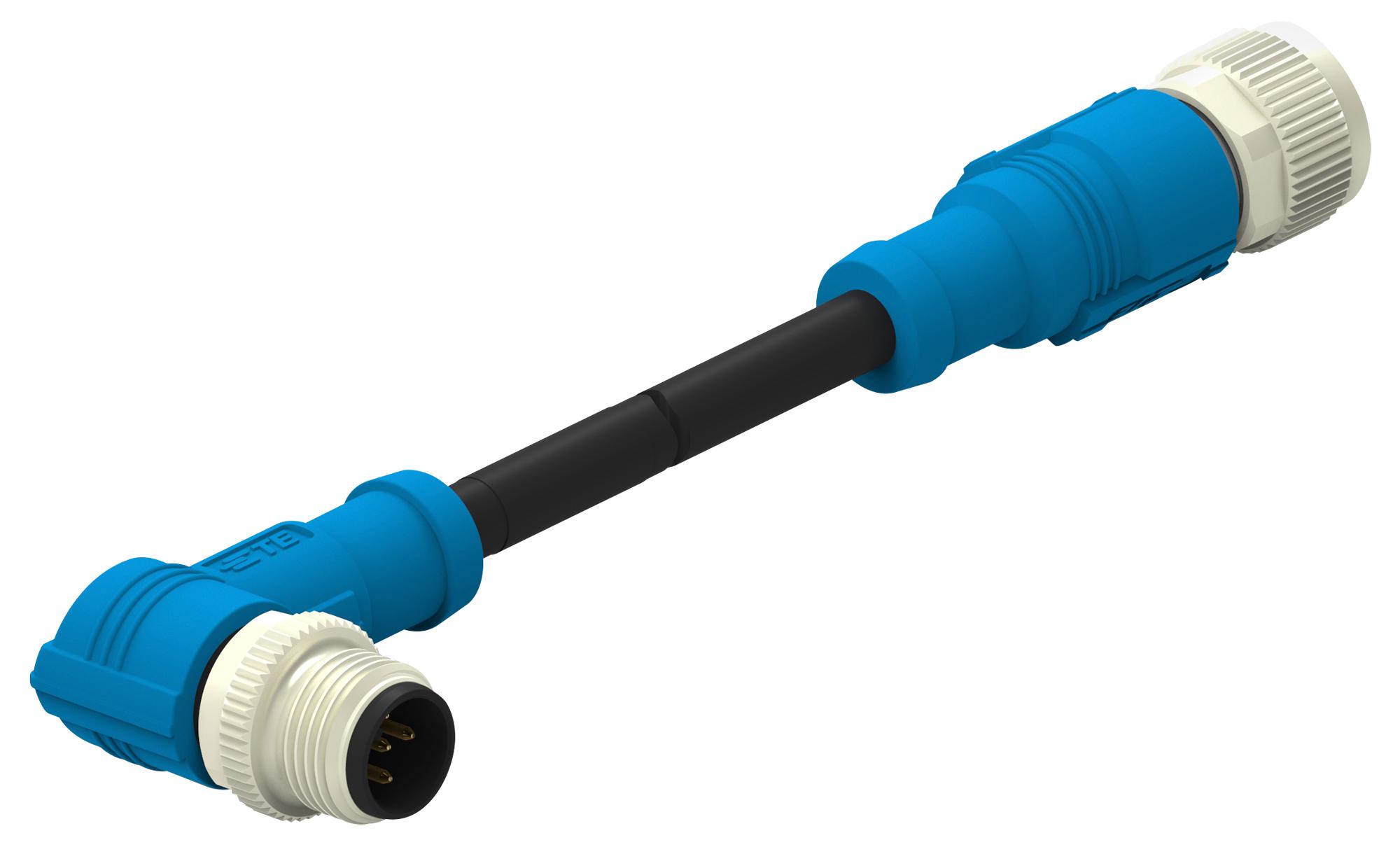

TE CONNECTIVITY T4162223005001 Sensor Actuator Cable
The M8M12 cable assemblies are durable, IP67 rated connections designed for sensors, robotics, and industrial machinery in harsh environments. Available in shielded and unshielded options with PVC or PUR sheathing, these assemblies suit applications requiring reliable, dustproof, and waterproof connectivity. They feature multiple configurations—including single-ended and double-ended versions, straight and angled connectors, and various pole counts—helping reduce downtime and ensuring continuous operation in demanding industrial, automation, and electronics manufacturing settings. Their robust construction withstands extreme temperatures, mechanical stresses, and electromagnetic interference.
TE CONNECTIVITY T4162223005001 Sensor Actuator Cable Specifications:
- Protection Class: IP67 (dust and waterproof)
- Cable Sheathing: PVC or PUR
- Conductor Cross Section: 24 AWG (PVC/PUR), 32/0.10mm (Shielded)
- Number of Conductors: 3, 4, 5, 8 poles
- Temperature Range - Fixed: PVC -40°C to +80°C, PUR -10°C to +80°C
- Temperature Range - Flexible: PVC -25°C to +80°C, PUR -5°C to +80°C
- Material: Brass contacts with gold flash plating, Nickel-plated brass nuts, Silicon rubber O-rings, Stainless steel springs, TPU over-molding, PA housing
- Voltage Rating: up to 250V (varies by configuration)
- Current Rating: up to 4A (per conductor, varies with pole count)
- Standards: UL758, UL1581, UL2464, IEC 61076-2-101, IEC 61076-2-104, IP Code
- Durability: 100 cycles
- Cable Length Options: 0.5m, 1m, 1.5m, 3m, 5m, 7m, 10m
Buy the TE Series M8M12 Sensor Actuator Cable: T4162223005001
Purchase TE Series M8M12 sensor actuator cable assemblies online today to ensure quick delivery, durable construction, and reliable connections for your industrial automation and robotics needs. These IP67-rated cable assemblies feature a variety of configurations, including shielded and unshielded options, with PVC or PUR sheathing for resistance to chemicals, mechanical stress, and extreme temperatures. Designed for easy installation and minimal maintenance, they provide a cost-effective solution to reduce downtime and improve operational efficiency in demanding industrial applications.
Buy TE Series M8M12 sensor actuator cable assemblies now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4162223005001?
You can click on the BUY or RFQ button to purchase T4162223005001 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4162223005001?
You can download the T4162223005001 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4162223005001?
TE CONNECTIVITY
