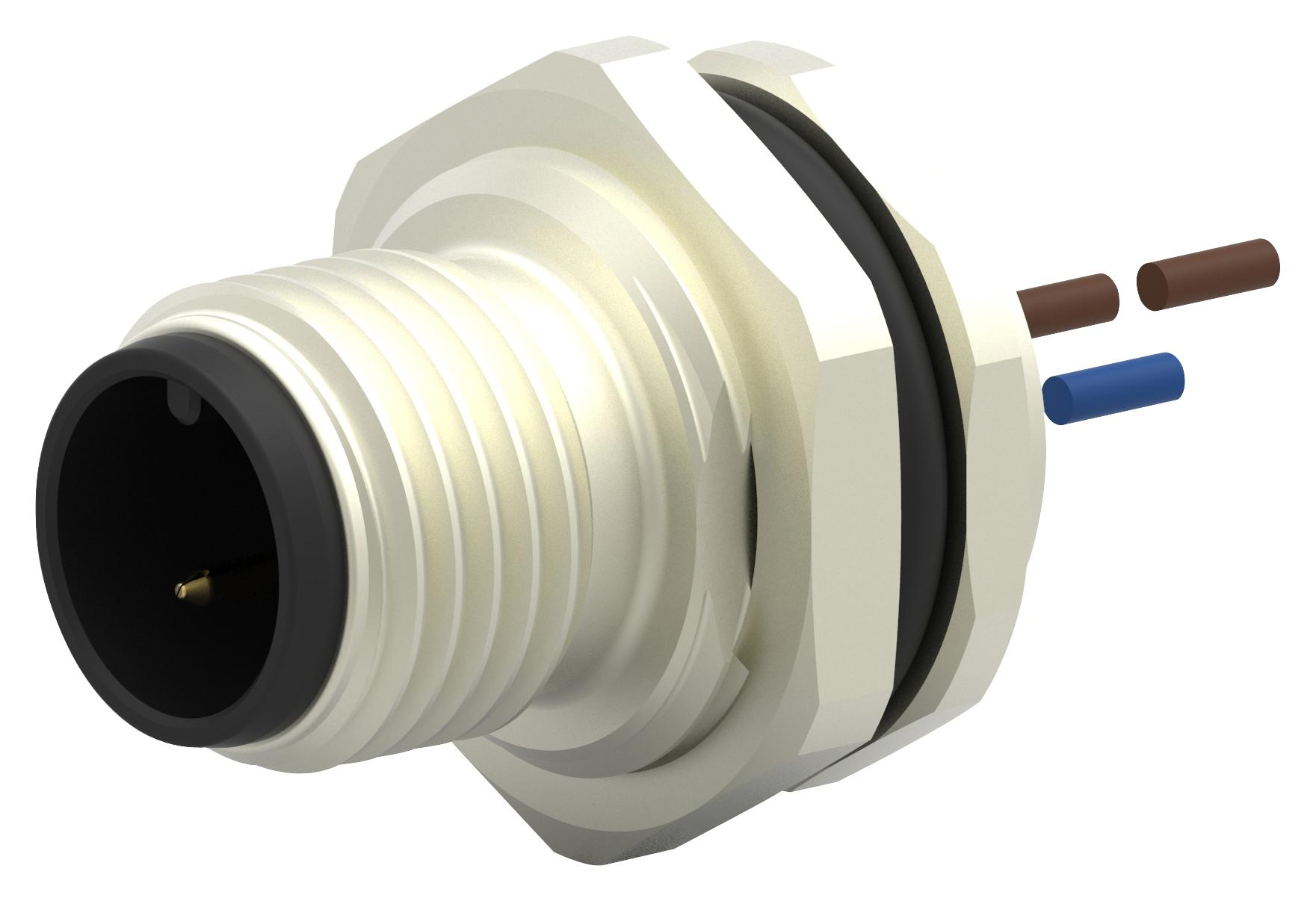

TE CONNECTIVITY T4171010002001 Signal Connector
The M12 connector is a standard circular, wire-to-panel connector designed for signal transmission with a 4A current rating. It features a sealed, metal shell, keying for polarized positioning, and is suitable for industrial automation and instrumentation applications. This connector supports a temperature range of -40°C to 85°C, IP67 water resistance, and is compliant with European and global environmental standards including RoHS and REACH. Its compact, plug-in design ensures reliable, vibration-resistant connections for electronic systems requiring robust and quick connectivity solutions.
TE CONNECTIVITY T4171010002001 Signal Connector Specifications:
- Connector System: Wire-to-Panel
- Number of Positions: 2
- Sealable: Yes
- Contact Current Rating (Max): 4A
- Operating Voltage: 250 VAC
- Shell Plating Material: Nickel
- Shell Base Material: Metal
- Insulation Material: Polyamide
- Wire Size: 0.34-0.5 mm²
- Water Sealing Level: IP67
- Operating Temperature Range: -40°C to 85°C
- Thread Size: PG7
- Certifications: UL, RoHS, REACH
- Environmental Protection: Sealed, IP67
- Features: Prewired option, Keyed, Sealed design
- Application: Signal transmission in industrial environments
- Accessories: Includes PG7 cable gland, male plug
Buy the TE Series M12 Signal Connector: T4171010002
Purchase the TE Series M12 Signal Connector T4171010002 online today to ensure reliable, sealed connections for industrial automation and instrumentation. Featuring a 2-position, wire-to-panel design rated for 4A current and operating between -40°C and 85°C, this connector offers IP67 water resistance and rugged construction for harsh environments. Its sealed, metal shell ensures vibration resistance and durability, making it ideal for signal transmission applications in industrial settings. Buy now for quick installation and long-lasting performance in critical electronic systems.
Get TE Series M12 Signal Connector T4171010002 today—built for industrial signal transmission with robust sealing and precise polarization.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4171010002001?
You can click on the BUY or RFQ button to purchase T4171010002001 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4171010002001?
You can download the T4171010002001 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4171010002001?
TE CONNECTIVITY
