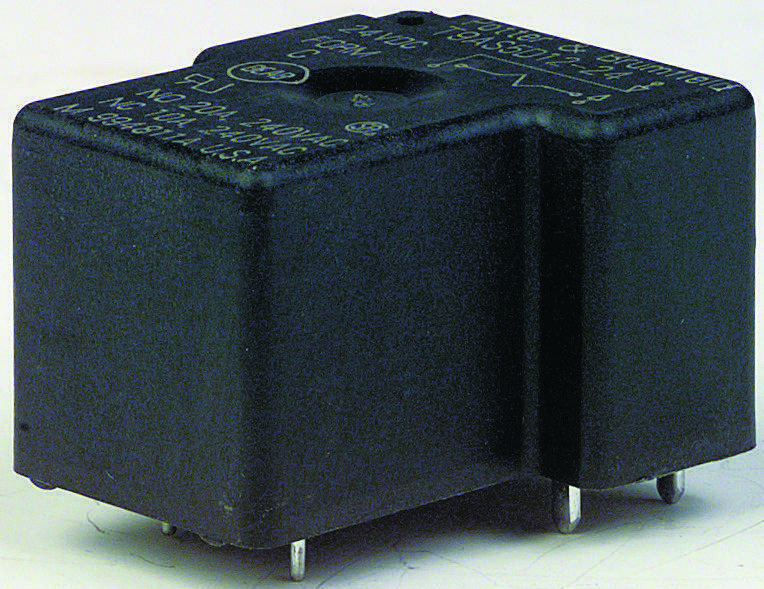

TE CONNECTIVITY T9AS5D1218 Power Relay
The T9AS5D12-18 is a PCB-mount power relay with AgCdO contacts and SPDT configuration. Part of the T9A series, it is rated for 30A DC coil current and has a wash-tight plastic case with knock-off nib enclosure. Meeting UL coil insulation class F, it offers an insulation creepage distance of 5.5 to 8mm and a maximum continuous contact current of 20A. It supports a minimum switching load of 1000mA at 5V, with insulation voltage ratings of 1500VRMS between open contacts and 2500VRMS between contacts and coil. Suitable for HVAC, industrial automation, and control systems.
TE CONNECTIVITY T9AS5D1218 Power Relay Specifications:
- Coil Voltage: 12VDC
- Coil Power: 900mW
- Contact Material: AgCdO
- Contact Arrangement: Single Pole Double Throw (SPDT)
- Maximum Contact Current: 20A
- Maximum Switching Voltage: 277VAC
- Insulation Resistance: 1000Megaohms
- Initial Dielectric Strength: 1500VRMS between open contacts, 2500VRMS between contact and coil
- Insulation Creepage Distance: 5.5 to 8mm
- Enclosure: Wash-tight plastic case with knock-off nib
- Mounting: PCB mount
- Operating Temperature Range: -55°C to +85°C
- Certifications: UL Listed, CSA Certified
Buy the TE Connectivity T9A Series – Reliable Power Relay for Industrial Applications
Enhance your industrial, HVAC, or electronics project with the T9A Series power relay. Featuring AgCdO contacts, a robust wash-tight plastic case, UL F insulation, and supporting up to 20A, this relay ensures reliable switching and durability. Its compact PCB mount design allows easy integration into various control and automation systems. With high dielectric strength and insulation resistance, the relay provides safety and peace of mind. Order now online to upgrade your control system with this trusted, high-performance relay designed for demanding applications.
Buy TE Connectivity T9A Series power relay now and experience unmatched reliability and performance in industrial control systems.
