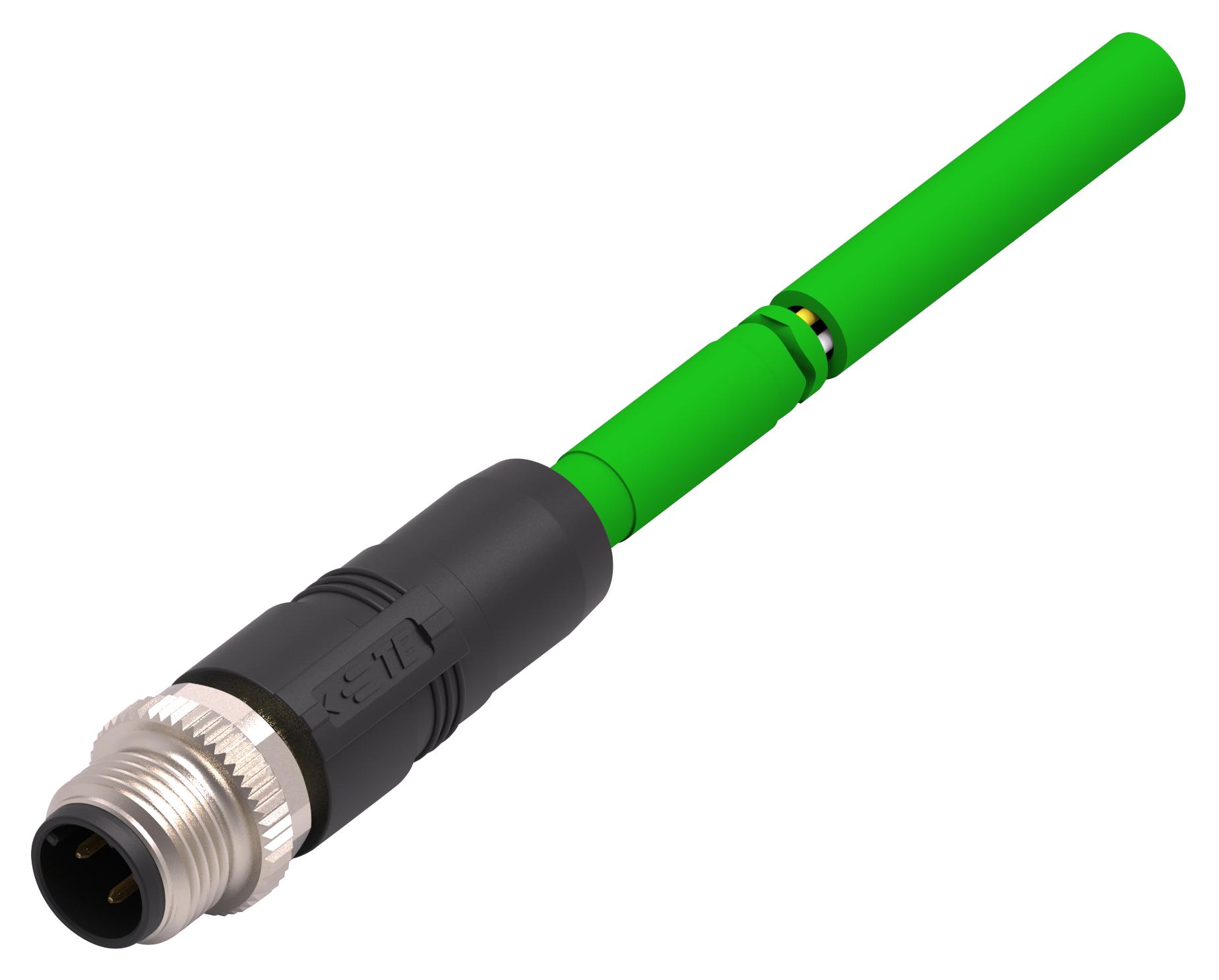

TE CONNECTIVITY TAD14145101002 Industrial Ethernet Cable
This rugged M12 Ethernet cable assembly features a single-ended design with a M12 D-code 4-pin male straight connector. Made with shielded CAT5E type C PUR green cable, it ensures reliable Ethernet connectivity in industrial environments. Rated for 30V and 1.5A, it supports high-speed data transfer up to 100 Mbps. The IP67 rating provides excellent protection against dust and water ingress, ideal for factory automation, process control, robotics, and industrial machinery applications, where durability and reliable data transmission are critical.
TE CONNECTIVITY TAD14145101002 Industrial Ethernet Cable Specifications:
- Connector: M12 D-code 4 pins, male straight
- Cable Type: CAT5E, Type C PUR, green
- Voltage Rating: 30V DC
- Current Rating: 1.5A
- Protection: IP67 rated for dust and water resistance
- Cable Length: Customizable up to 30 meters
- Material: Overmolded PUR cable, brass contact with 30um gold plating
- Operating Temperature: -40°C to +80°C (fixed), -20°C to +60°C (flexible)
- Electrical: Supports Ethernet/IP, 100 Mbps data rate
- Mechanical: Durable up to 1 million flexes in harsh environments
- Compliance: UL1863, IEC 61076-2-101, IEC 60512, IEC 60529
- Application: Industrial communication, process control, robotics, machinery
Buy the TE Connectivity Series M12 Ethernet Cable: TAD14145101002
Experience the durability and high performance of TE Connectivity's M12 Ethernet cable assembly, designed for industrial automation, robotics, and machinery. This shielded, IP67-rated cable features a male straight M12 D-code connector and a flexible PUR green jacket, supporting Ethernet/IP data transmission at up to 100 Mbps. With a voltage rating of 30V and current capacity of 1.5A, it's ideal for harsh industrial environments requiring reliable, secure data transfer. Custom lengths up to 30 meters make it versatile for various installation needs, ensuring your industrial network remains robust and efficient.
Order your TE Connectivity Series M12 Ethernet cable assembly today and ensure reliable high-speed industrial communication in demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TAD14145101002?
You can click on the BUY or RFQ button to purchase TAD14145101002 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TAD14145101002?
You can download the TAD14145101002 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TAD14145101002?
TE CONNECTIVITY
