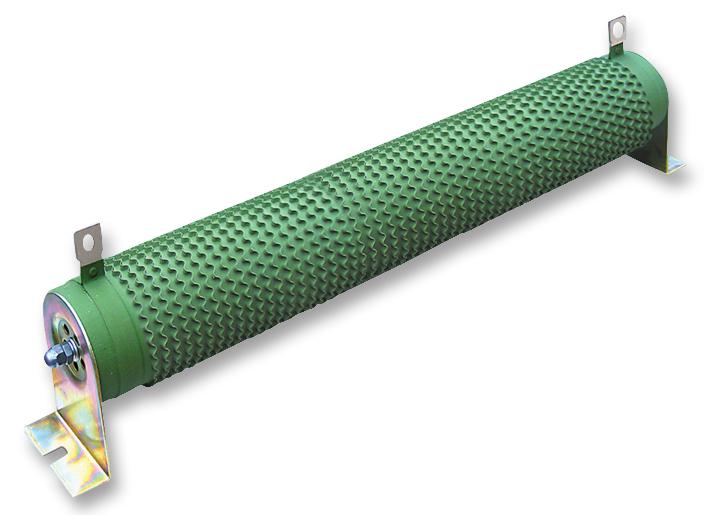

TE CONNECTIVITY TE1000B3R9J High Power Resistor
The TE Series high power wire wound resistor is designed for heavy-duty industrial applications such as motor control, dynamic braking, and electrical equipment load testing. With power ratings up to 2500W in free air, it features flameproof construction with UL94V-0 coating, RoHS compliance, and customizable terminations. The resistor offers excellent stability over a temperature range of -55°C to +155°C, with low temperature coefficients below 400 PPM/°C. Suitable for demanding environments, it provides high dielectric strength and insulation resistance, ensuring reliability in industrial control systems.
TE CONNECTIVITY TE1000B3R9J High Power Resistor Specifications:
- Power Rating: Up to 2500W in free air at 70°C
- Resistance Range: Ranges from 10Ω to 120Ω
- Tolerance: ±10% (typical 45% +10%)
- Temperature Coefficient of Resistance: <200 +400PPM/°C
- Operating Temperature: -55°C to +155°C
- Dielectric Strength: 2500VAC minimum
- Insulation Resistance: 20MΩ minimum at DC 600V
- Construction: Flameproof with UL94V-0 coating, ceramic core
- Material: Ceramics (Al2O3, SiO2), Ni-Cr or Cu-Ni alloy wire
- Environmental Resistance: Resistance variation below 200 PPM/°C, high dielectric strength, high insulation resistance
Buy the TE Series High Power Wire Wound Resistor: TE1000B3R9J
Order the TE Series high power wire wound resistor TE1000B3R9J online today for robust performance in industrial applications. Designed for loads up to 2500W, it features flameproof construction, UL94V-0 coating, and a wide temperature range from -55°C to +155°C. Ideal for motor control, dynamic braking, and electrical load testing, this resistor provides excellent stability, high dielectric strength, and insulation resistance. Enjoy quick delivery, secure checkout, and expert support to ensure your critical equipment operates reliably and efficiently.
Buy TE Series high power wire wound resistor TE1000B3R9J now and experience unmatched reliability and high performance for heavy industrial use.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE1000B3R9J?
You can click on the BUY or RFQ button to purchase TE1000B3R9J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE1000B3R9J?
You can download the TE1000B3R9J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE1000B3R9J?
TE CONNECTIVITY
