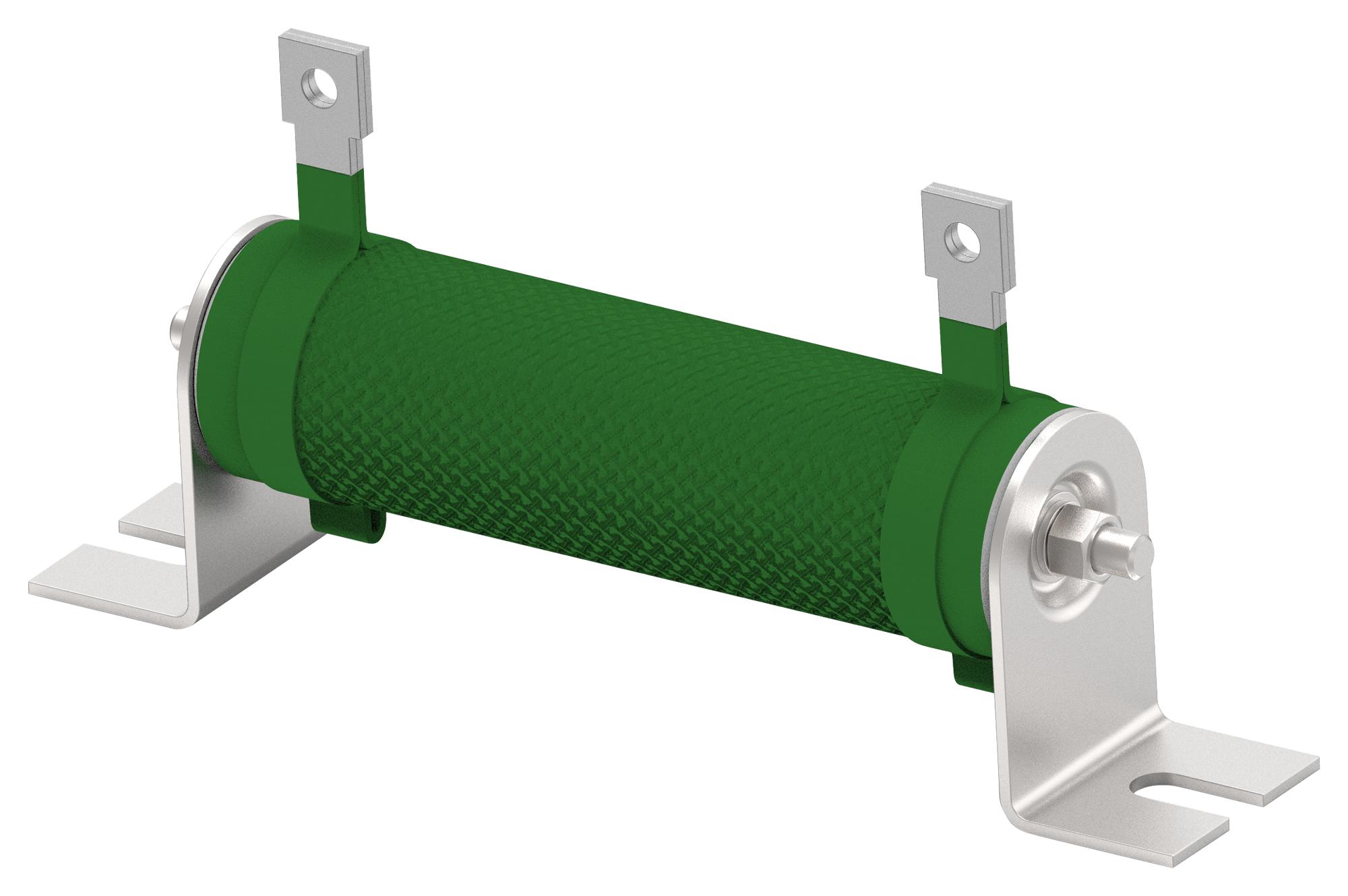

TE CONNECTIVITY TE50BR56J High Power Wire Wound Resistor
The TE Series high power wire wound resistors are flameproof coated tubular ceramic core components designed for heavy-duty applications like machinery, load testing, motor control, and dynamic braking. They utilize standard and edge wound winding methods to enhance power handling. Operating from -55°C to +155°C, these resistors feature UL94V flameproof coating, short-term overload tolerance of three times rated power for 5 seconds, dielectric strength of 2500VAC, and minimum insulation resistance of 20 megohms at 500VDC. They include a reliable mounting bracket for easy installation, ensuring stability and durability in demanding environments.
TE CONNECTIVITY TE50BR56J High Power Wire Wound Resistor Specifications:
- Power Rating: 50 W
- Dimensions: 146 x 28 x 61 mm
- Resistance Value: 56 Ω
- Resistance Class: Up to 1kΩ
- Passive Component Tolerance: 5%
- Element Type: Wire Wound
- Termination: 2 Mounting Terminals
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: 2500 VAC
- Insulation Resistance: ≥20 MΩ at 500VDC
- Flameproof Coating: UL94V-0
- Overload Tolerance: 3× rated power for 5 seconds
- Compatibility: Suitable for machinery, electrical equipment, motor control
- Mounting: Standard bracket included
Buy the CGS Series Power Resistor: TE50BR56J
Purchase your high power wire wound resistor online today and experience dependable heavy-duty performance for machinery, motor control, and electrical applications. Featuring a flameproof ceramic core, UL94V coating, and operating from -55°C to +155°C, this 50W resistor with dimensions of 146x28x61mm offers excellent durability. Its 5% tolerance, dielectric strength of 2500VAC, and insulation resistance of 20 megohms ensure safety and stability even in demanding environments. Easy to install with a standard mounting bracket, perfect for industrial machinery, load testing, and dynamic braking applications.
Order your CGS Series power resistor TE50BR56J today and ensure reliable, heavy-duty performance for your machinery and electrical systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE50BR56J?
You can click on the BUY or RFQ button to purchase TE50BR56J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE50BR56J?
You can download the TE50BR56J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE50BR56J?
TE CONNECTIVITY
