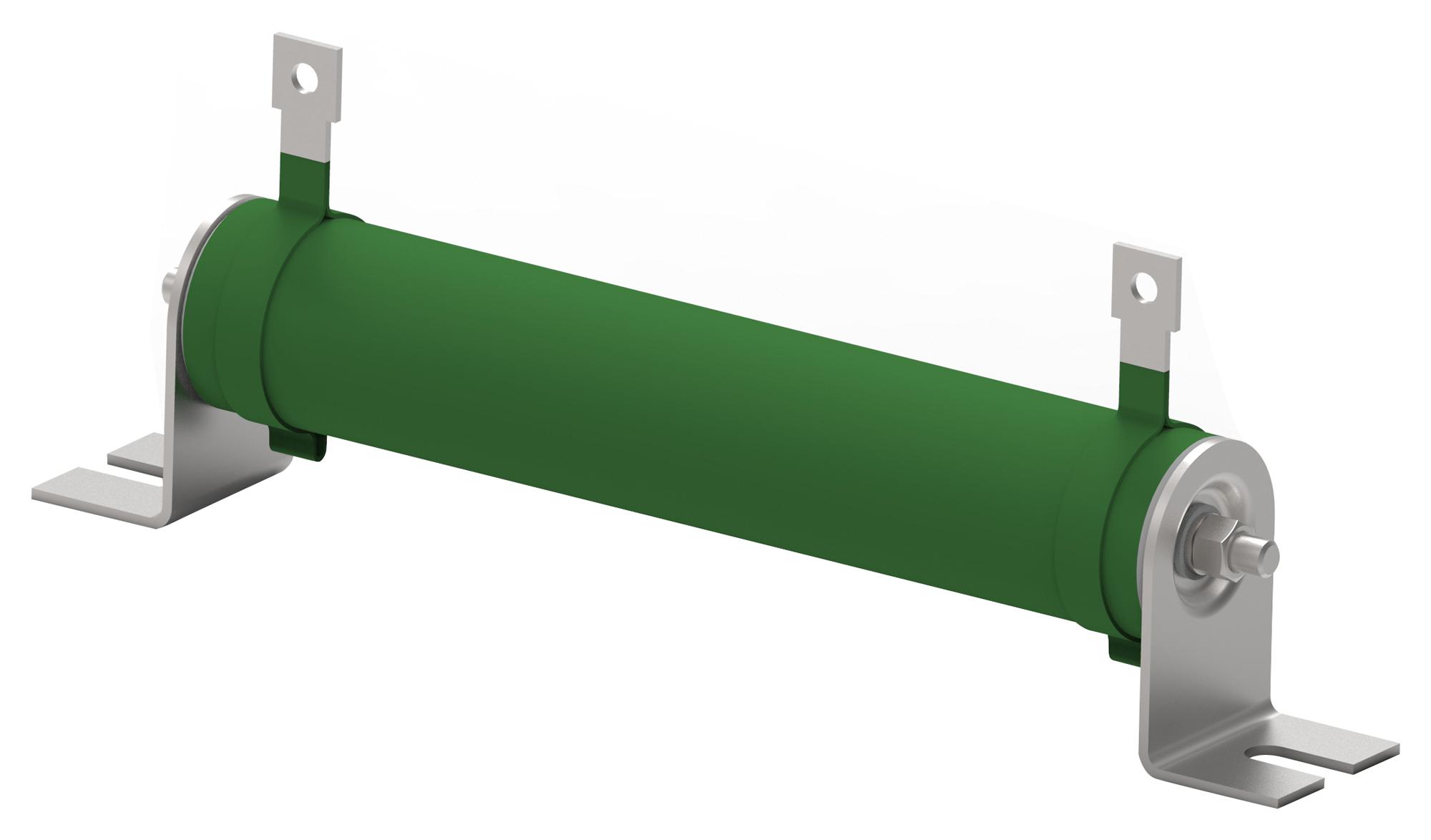

TE CONNECTIVITY TE80BR18J Power Resistor
Type TE series high power wire wound resistors are flameproof coated tubular ceramic core resistors designed for heavy-duty machinery, electrical equipment, and motor control. They offer stability and reliability in demanding environments, with features like UL94V flameproof coating, operating temperature from -55°C to +155°C, short-term overload capacity of 3× rated power for 5 seconds, dielectric strength of at least 2500VAC, and insulation resistance minimum of 20MΩ at 500VDC. Standard bracket mounting ensures straightforward installation, making these resistors ideal for load testing, motor start/stop cycles, dynamic braking, and discharge applications.
TE CONNECTIVITY TE80BR18J Power Resistor Specifications:
- Power Rating: 80 W
- Resistance Value: 18Q
- Resistance Tolerance: 5%
- Dimensions: 196 x 28 x 61 mm
- Element Type: Wire Wound
- Mounting: Bracket mounting
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: ≥2500VAC
- Insulation Resistance: ≥20MΩ at 500VDC
- Flameproof Coating: UL94V
- Short-term overload capacity: 3× rated power for 5 seconds
Buy the CGS Series Power Resistor: TE80BR18J
Order the CGS series high power wire wound resistor TE80BR18J online today to enjoy durable, flameproof design with excellent thermal stability. Perfect for industrial machinery, motor control, load testing, and dynamic braking. This resistor offers easy bracket mounting, withstanding harsh environments from -55°C to +155°C. Its robust ceramic core and UL94V coating ensure safety and reliability under demanding conditions. Purchase now to enhance your equipment’s performance with a high-capacity, flameproof power resistor that guarantees long-term stability and operational excellence.
Buy CGS series power resistor TE80BR18J now and ensure high reliability for heavy-duty applications like motor control and load testing.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE80BR18J?
You can click on the BUY or RFQ button to purchase TE80BR18J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE80BR18J?
You can download the TE80BR18J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE80BR18J?
TE CONNECTIVITY
