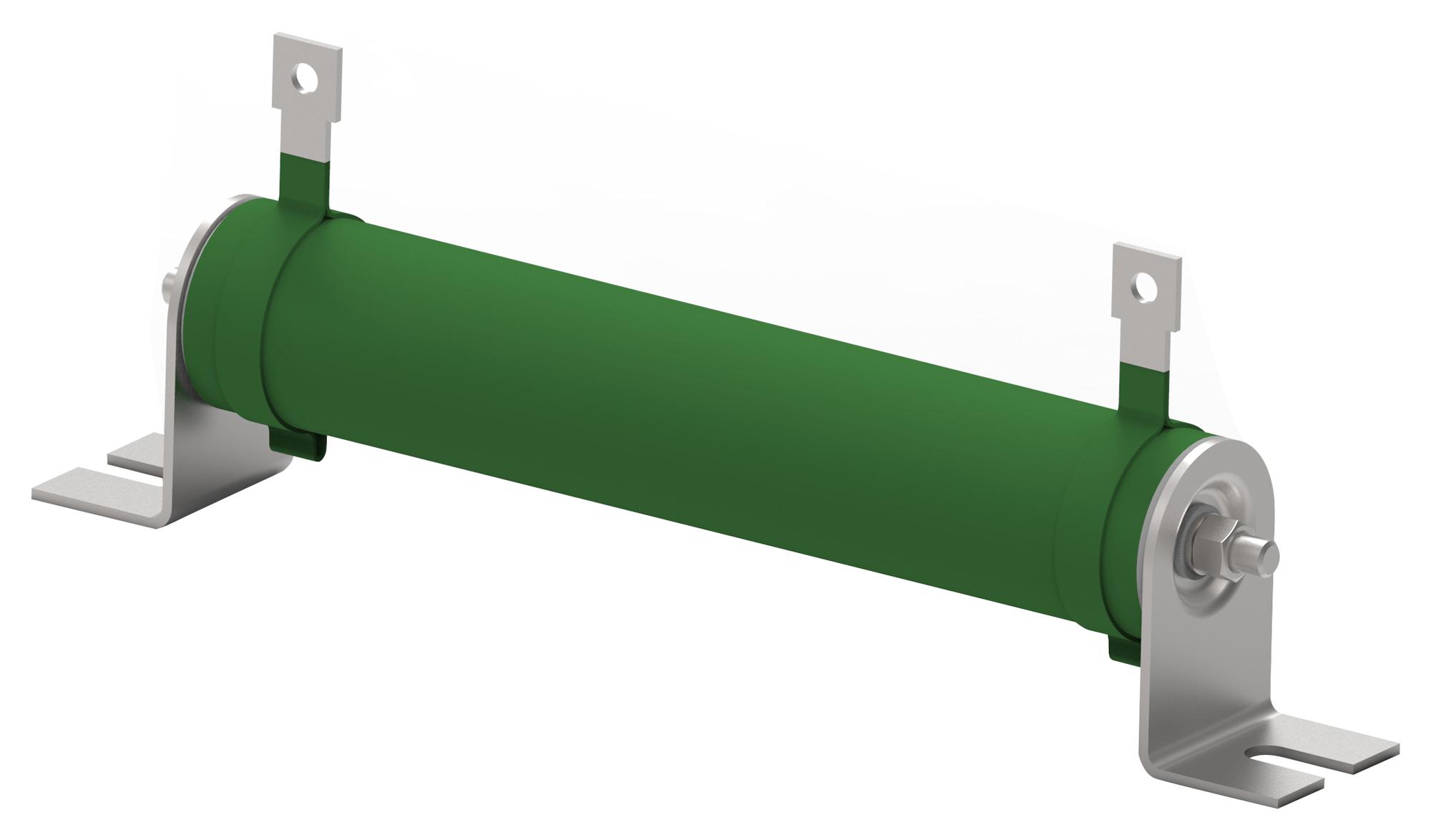

TE CONNECTIVITY TE80BR39J High Power Wire Wound Resistor
Type TE series high-power wire wound resistors feature flameproof UL94V coating and a tubular ceramic core, offering enhanced stability and reliability for heavy-duty machinery, electrical equipment, and motor control. Designed to withstand large electrical loads, load testing, motor start/stop cycles, and dynamic braking, these resistors operate within -55°C to +155°C and can handle three times their rated power for five seconds. They have a dielectric strength of minimum 2500VAC, insulation resistance of at least 20MΩ at 500VDC, and include a standard mounting bracket for easy installation.
TE CONNECTIVITY TE80BR39J High Power Wire Wound Resistor Specifications:
- Resistor Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 196 x 28 x 61 mm
- Number of Terminations: 2
- Packaging Method: Box
- Passive Component Tolerance: 5%
- Resistance Class: Up to 1kΩ
- Resistance Value: 39 Ω
- Power Rating: 80 W
- Temperature Range: -55°C to +155°C
- Dielectric Strength: Minimum 2500VAC
- Insulation Resistance: At least 20MΩ at 500VDC
- Flammability: UL94V-0
- Mounting: Includes standard mounting bracket
Buy the CGS Series Power Resistor: TE80BR39J
Order the high-power wire wound resistor from the CGS Series, model TE80BR39J, designed for heavy-duty machinery and electrical systems. Featuring flameproof UL94V coating, ceramic core, and robust construction, this resistor provides stable performance across temperatures from -55°C to +155°C. Its 80W power rating, dielectric strength of 2500VAC, and 5% tolerance make it ideal for load testing, motor control, and dynamic braking. Easy installation with a standard mounting bracket ensures reliable operation in demanding environments.
Buy CGS Series TE80BR39J power resistor now and experience unmatched reliability and high power handling for heavy-duty electrical applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE80BR39J?
You can click on the BUY or RFQ button to purchase TE80BR39J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE80BR39J?
You can download the TE80BR39J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE80BR39J?
TE CONNECTIVITY
