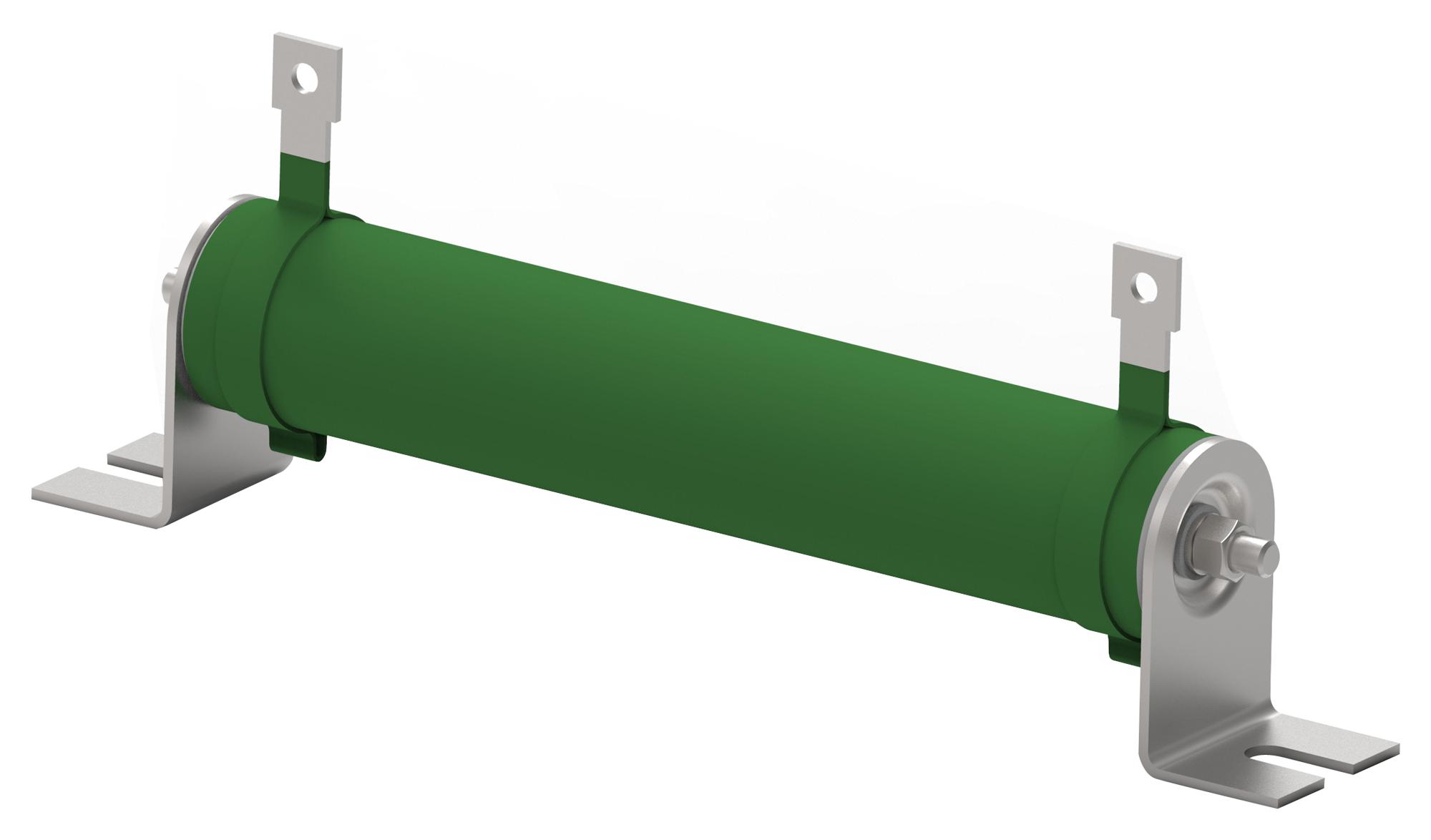

TE CONNECTIVITY TE80BR68J High Power Wire Wound Resistor
The TE series high power wire-wound resistors are flameproof coated, tubular ceramic core resistors designed for demanding applications. Suitable for heavy-duty machinery, electrical equipment, and motor control, they feature a robust construction with UL94V coating, operate from -55°C to +155°C, and handle three times their rated power for five seconds. These resistors offer high dielectric strength of at least 2500VAC, with an insulation resistance of 20 MΩ at 500VDC. Their box packaging includes a standard mounting bracket, ensuring reliability in load testing, dynamic braking, and motor start/stop cycles.
TE CONNECTIVITY TE80BR68J High Power Wire Wound Resistor Specifications:
- Resistor Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 196 x 28 x 61 mm
- Number of Terminations: 2
- Packaging Method: Box
- Passive Component Tolerance: 5%
- Resistance Value: 68 Q
- Resistance Class: Up to 1kQ
- Power Rating: 80 W
- Temperature Range: -55°C to +155°C
- Flameproof Coating: UL94V
- Dielectric Strength: ≥2500VAC
- Insulation Resistance: ≥20 MΩ at 500VDC
- Winding Method: Standard and Edge-wound (corrugated)
Buy the CGS Power Resistors – Reliable Wire Wound Components for Industrial Applications
Purchase high power wire-wound resistors online for your industrial applications. Designed for demanding environments, these resistors feature flameproof coating, robust ceramic core, and are suitable for heavy-duty machinery, motor control, and electrical equipment. With high dielectric strength, wide temperature range, and reliable construction, they ensure stability and lasting performance. Ideal for load testing, dynamic braking, and motor start/stop cycles, they come with standard mounting brackets, providing a simple upgrade solution for your power management needs.
Get CGS power resistors today—built for demanding industrial machinery, load testing, and motor control with high reliability and durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE80BR68J?
You can click on the BUY or RFQ button to purchase TE80BR68J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE80BR68J?
You can download the TE80BR68J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE80BR68J?
TE CONNECTIVITY
