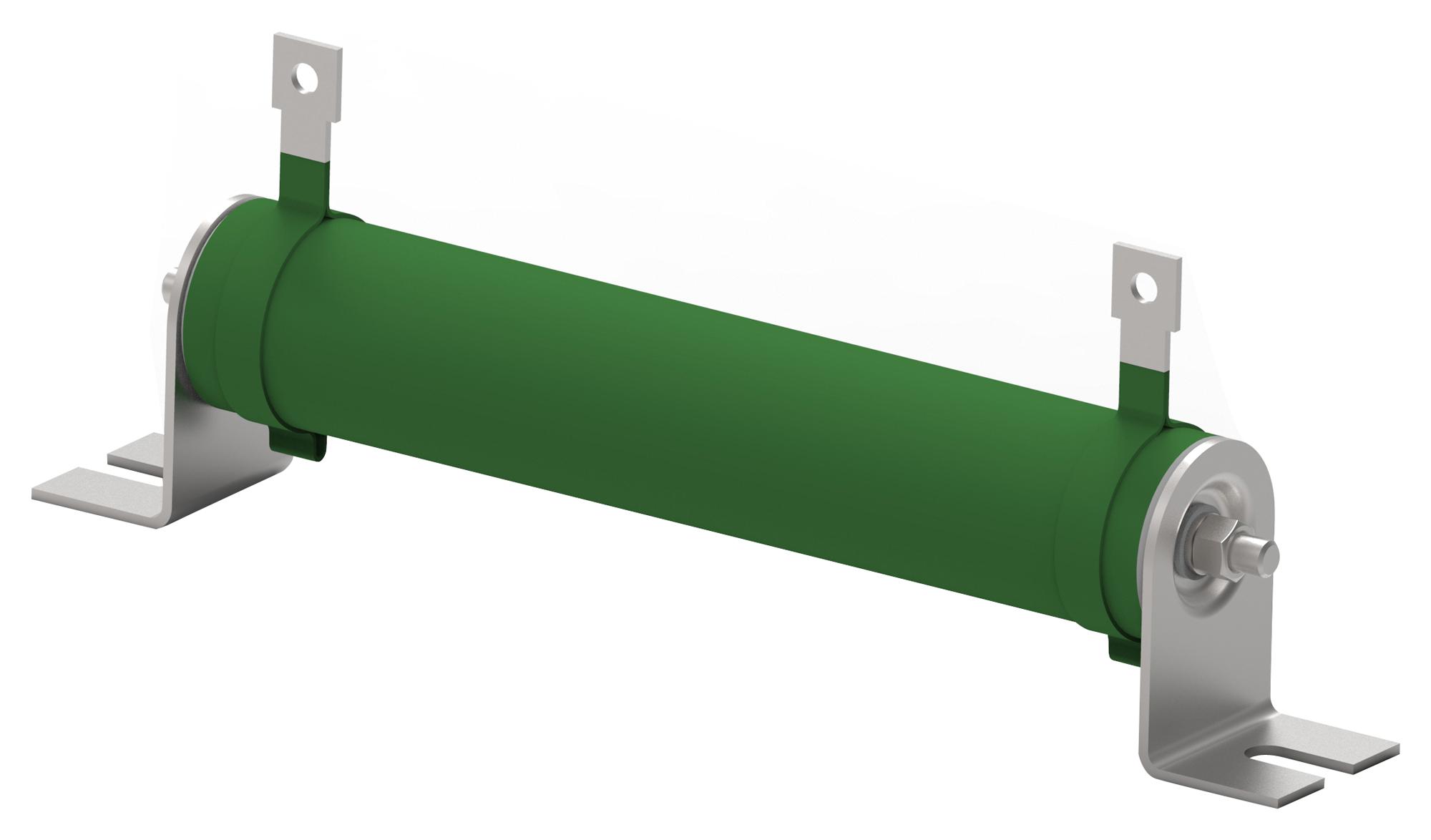

TE CONNECTIVITY TE80BR82J High Power Wire-Wound Resistor
The TE Series high-power wire-wound resistors are flameproof-coated tubular ceramic core resistors designed to handle demanding electrical applications. These resistors feature flameproof construction with UL94V coating, operate from -55°C to +155°C, and support short-term overloads of three times rated power for five seconds. They provide a minimum dielectric strength of 2500VAC and at least 20 MΩ insulation resistance at 500VDC. Suitable for heavy-duty machinery, motor control, load testing, and dynamic braking, these resistors ensure stability and reliability under demanding conditions.
TE CONNECTIVITY TE80BR82J High Power Wire-Wound Resistor Specifications:
- Power Rating: 80 W
- Resistance Value: 82 Ω
- Resistance Tolerance: 5%
- Dimensions: 196 x 28 x 61 mm
- Terminations: 2 mounting terminals
- Wire Wound: Yes
- Flammability: UL 94V-0
- Operating Temperature Range: -55°C to +155°C
- Overload Capacity: 3x rated power for 5 seconds
- Dielectric Strength: 2500 VAC
- Insulation Resistance: ≥20 MΩ at 500 VDC
- Packaging: Box
- Tolerance Class: Up to 1kΩ
Buy the CGS Series Power Resistor: TE80BR82J
Purchase the high-power wire-wound resistor from the CGS Series online today. Designed for demanding electrical applications like machinery, motor control, and load testing, this resistor features flameproof coating, operating temperatures from -55°C to +155°C, and a robust 80 W power rating. With flameproof construction, high dielectric strength, and insulation resistance, it ensures durability and stability. Get reliable performance for heavy-duty operations by ordering this essential component online now for fast and secure delivery.
Buy CGS Series Power Resistor TE80BR82J now and experience unmatched reliability and performance in heavy-duty electrical applications.
