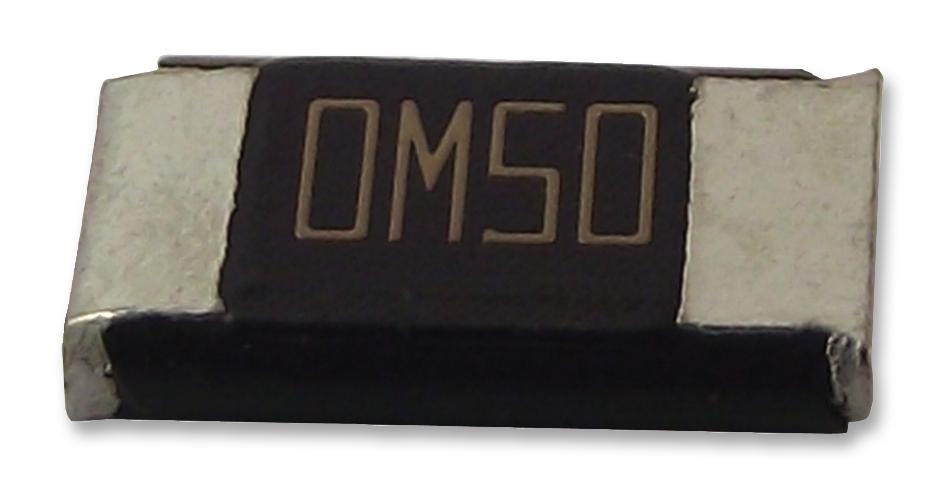

TE CONNECTIVITY TLR2H15DR005FTDG Current Sense Resistor
The TLR Series are high-power, low ohmic current sense resistors ideal for current detection in automotive applications and power supplies. They feature up to 3 watts power rating at 80°C, with resistance values ranging from 0.001 Ω to 0.05 Ω, and are supplied on tape for easy automation. These resistors have a special metal resistive element, barrier layers for terminal durability, and operate within -55°C to 170°C, making them suitable for demanding industrial environments. They come in different package sizes including 1206, 2010, and 2512, supporting precise current sensing and low-inductive characteristics for sensitive circuitry.
TE CONNECTIVITY TLR2H15DR005FTDG Current Sense Resistor Specifications:
- Power Rating: Up to 3 Watt at 80°C
- Resistance Value Range: 0.001 Ω to 0.05 Ω
- Resistance Tolerance: 25% to 43%
- Operating Temperature: -55°C to 170°C
- Size Options: 1206, 2010, 2512
- Package Type: Surface Mount Device (SMD)
- Inductance: Specified per model, supporting low inductive properties
- TCR (Temperature Coefficient): Varies; see detailed chart
- Material: Metal chip resistor with barrier layers
- Supply: Tape-fed for automation use
- Application: Current sensing, automotive power management, low voltage power supplies
Buy the Buy TE Connectivity TLR Series Part Number TLR2H15DR005FTDG Online
Purchase the TE Connectivity TLR Series current sense resistor online for accurate, high power current detection in automotive and power supply applications. These resistors accommodate high temperatures up to 170°C and feature a robust metal resistive element for durability and precision. Available in surface-mount sizes 1206, 2010, and 2512, they are supplied on tape, ensuring easy automation. Ideal for low ohmic shunting, these resistors support demanding environments, reducing inductance and maintaining stability across a wide temperature range, providing reliable long-term performance in sensitive electronic circuits.
Get TE Connectivity TLR2H15DR005FTDG today—designed for precise current sensing and reliable industrial performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TLR2H15DR005FTDG?
You can click on the BUY or RFQ button to purchase TLR2H15DR005FTDG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TLR2H15DR005FTDG?
You can download the TLR2H15DR005FTDG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TLR2H15DR005FTDG?
TE CONNECTIVITY
