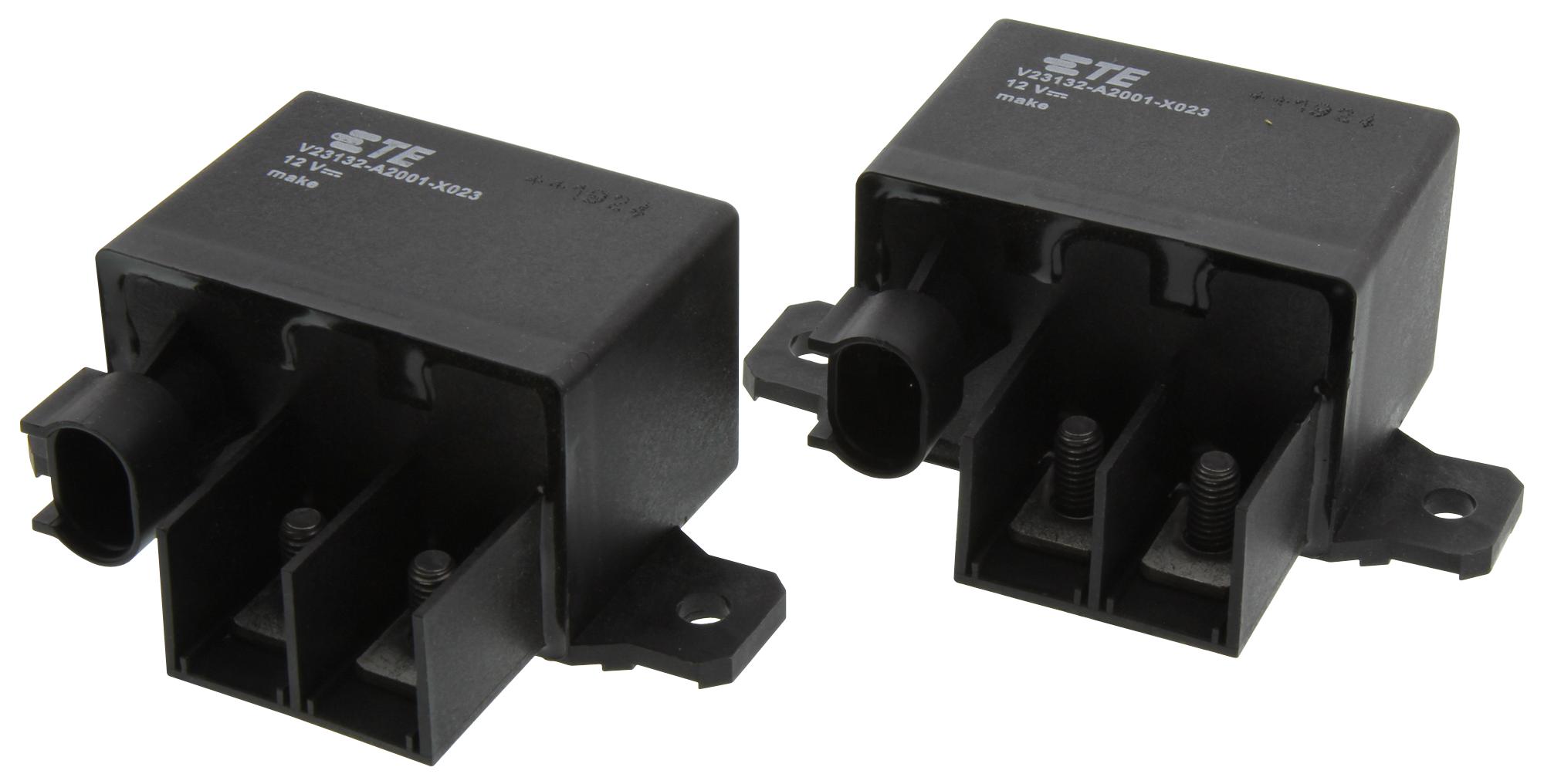

TE CONNECTIVITY V23132A2001X023 High Current Automotive Relay
The high current relay rated for 150A is designed for automotive applications, capable of handling continuous currents up to 130A at 85°C with switching abilities up to 300A. It features a rugged design resistant to heat, moisture, and vibration, suitable for voltage levels up to 24VDC. The relay is sealed, dustproof, and compliant with RoHS standards, with terminal types including screw terminals and a terminal arrangement supporting high current loads. Ideal for engine control, glow plugs, heated screens, and preheating systems, it offers reliable electrical and mechanical endurance under harsh conditions.
TE CONNECTIVITY V23132A2001X023 High Current Automotive Relay Specifications:
- Contact arrangement: 1 form A, 1 NO / 1 form B, 1 NC / 1 form C, 1 CO / 1 form X, 1 NO DM
- Rated coil voltage: 12/24VDC
- Rated coil power: 3.3W
- Maximum coil temperature: 155°C
- Rated current: 130A at 85°C, load cable 16mm², load cable 25mm² for higher currents
- Switching ability: up to 300A
- Coil operate voltage range: 12VDC and 24VDC, with resistive load support
- Contact material: AgSnO₂
- Durability: >5×10⁴ cycles at 300A, resistive load
- Insulation dielectric strength: 1000VAC
- Protection: IP54 dustproof, IP67 sealed, resistant to moisture and corrosion
- Terminal type: screw terminals, load side cable lug M6, rated for cables up to 25mm²
- Operating temperature range: -40°C to +125°C
- Vibration resistance: >5g, shock resistance: >20g
- Seal and enclosure compliant with IEC 60529 and IEC 61810 standards
Buy the Tyco Series High Current Relay 150: V23132A2001X023
Order the Tyco high current relay supporting 150A now online and ensure your automotive or industrial system benefits from superior performance and durability. Engineered for harsh environments, it features robust sealing, high load capacity, and excellent endurance with a sealed IP67 design, making it ideal for engine control, preheating, and heavy-duty switching applications. Quick and secure online purchase guarantees timely delivery, enabling you to install a dependable component that enhances system safety and operational efficiency, ensuring long-term dependable operation under extreme conditions.
Buy Tyco high current relay 150A now and experience unmatched reliability and performance in demanding automotive and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY V23132A2001X023?
You can click on the BUY or RFQ button to purchase V23132A2001X023 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part V23132A2001X023?
You can download the V23132A2001X023 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of V23132A2001X023?
TE CONNECTIVITY
