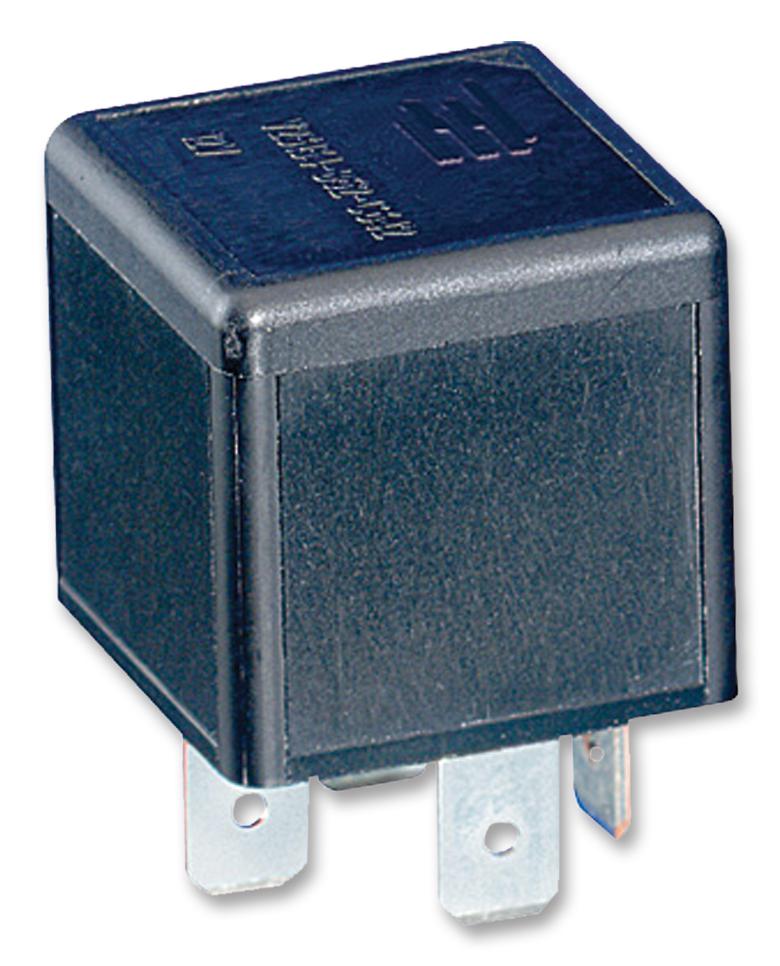

TE CONNECTIVITY V23134A0052C643 Automotive Power Relay
The Power Relay F4 is a high-performance automotive relay designed for switching and controlling various vehicle systems such as ABS, fuel pumps, and lighting. It features plug-in or PCB terminals, contact gaps >0.8mm, and various contact configurations including NO, NC, and form C. Rated for up to 72VDC with contact currents of 60A at 23°C, and with high electrical endurance exceeding 200,000 operations. The relay complies with IEC standards, suitable for harsh automotive environments, with insulation strength of 500V and robust construction for reliable performance.
TE CONNECTIVITY V23134A0052C643 Automotive Power Relay Specifications:
- Rated voltage: 72VDC
- Contact arrangement: 1 NO, 1 NC, 1 form C, 1 form A, 1 form U, 2 NO
- Contact gap: >0.8mm
- Rated current: 60A at 23°C, 40A at 85°C, 17A at 125°C
- Electrical endurance: >200,000 operations at resistive load
- Mechanical endurance: >1×10⁶ operations
- Coil voltage: 12VDC, 24VDC, 42VDC (custom options available)
- Contact material: Silver-based
- Insulation dielectric strength: 500V between open contacts, coil to contact, adjacent contacts
- Operating temperature range: -40°C to +125°C
- Protection: IP54 dustproof, IP67 sealed
- Vibration resistance: >20g
- Shock resistance: 20g
- Approval: IEC 61810-1, RoHS/ELV compliant
- Switching capacity: up to 80VDC, 60A
- Terminal types: Plug-in, PCB, with optional brackets
Buy the TE Series Power Relay F4: V23134A0052C643
Upgrade your vehicle's control system with this high-performance automobile power relay. Designed for demanding automotive applications, it features contact gaps >0.8mm, robust silver-based contacts, and rated for up to 72VDC and 60A. Its plug-in or PCB mounting options ensure flexible installation. With superior durability tested for over 200,000 cycles, this relay provides reliable switching for critical functions like ABS, fuel pumps, lighting, and engine control. Purchase online for fast delivery and consistent operation across all vehicle systems.
Get TE Series Power Relay F4 today—built for automotive reliability, high current switching, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY V23134A0052C643?
You can click on the BUY or RFQ button to purchase V23134A0052C643 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part V23134A0052C643?
You can download the V23134A0052C643 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of V23134A0052C643?
TE CONNECTIVITY
