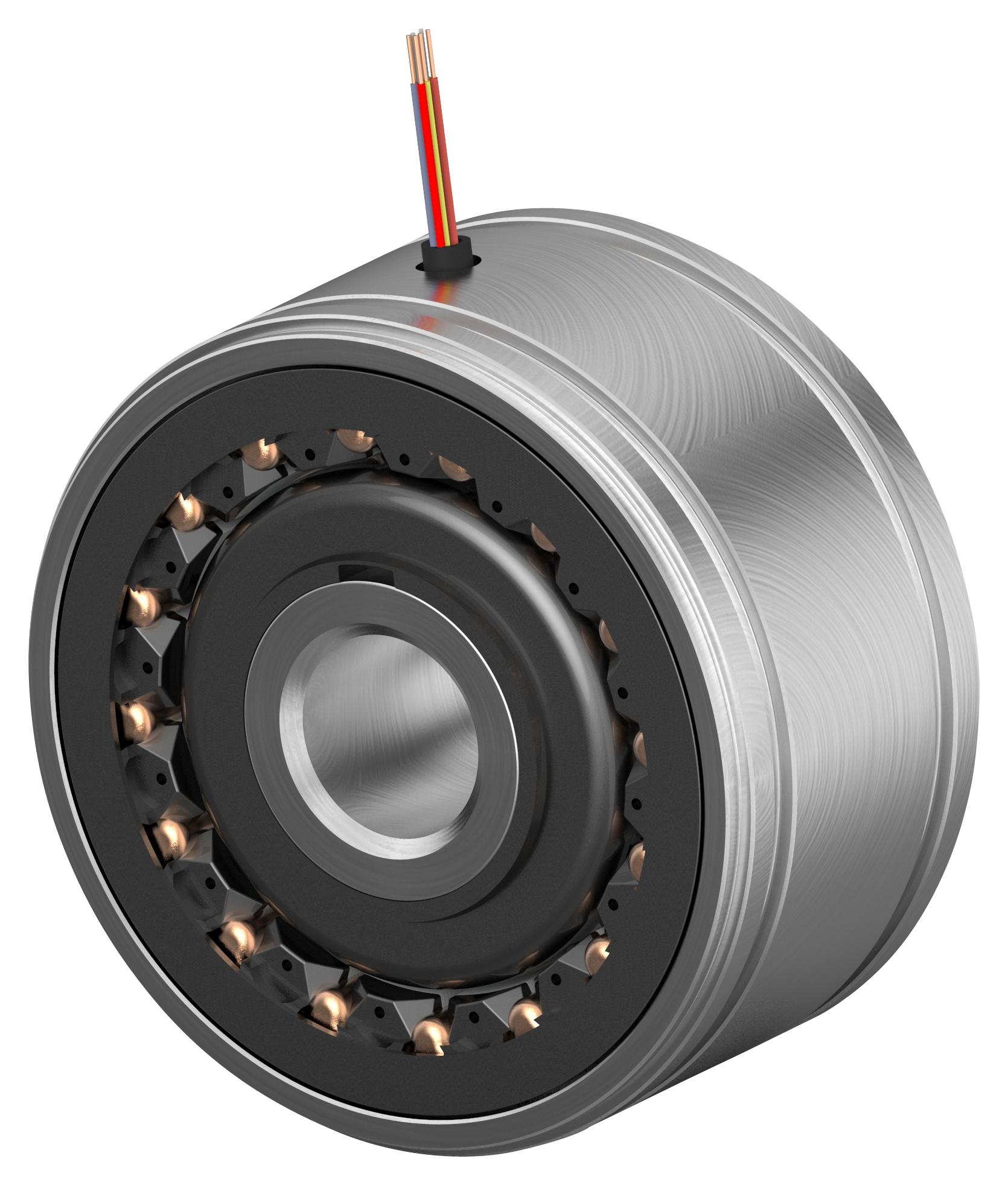

TE CONNECTIVITY V23401U1016B110 Hollow Shaft Resolver
This hollow shaft resolver provides precise angular measurement with a 12.7 mm inner shaft diameter, supporting speeds up to 20,000 rpm. Designed for high-performance applications, it features a 4V to 20V input voltage range, 65 ohm winding resistance, and a transformation ratio of 0.5. Its robust construction withstands shock up to 1,000 m/s² and vibrations of 200 m/s², operating reliably from -55°C to 415°C. Suitable for industrial automation and control systems, it ensures accurate angular feedback in demanding environments.
TE CONNECTIVITY V23401U1016B110 Hollow Shaft Resolver Specifications:
- Shaft inner diameter: 12.7 mm
- Max rotational speed: 20,000 rpm
- Input voltage: 4V..20V (DC)
- Electrical resistance: 65 ohms
- Frequency nominal: 2kHz..10kHz
- Phase shift: -7° to +3°
- Angular error: 6 arc minutes
- Residual voltage: 15 mV
- Winding wire length: 300 mm, AWG 26 Teflon insulated
- Isolation voltage: 500 Vac, 3% (A), 250 Vac, 3% (B)
- Shock resistance: 1000 m/s²
- Vibration resistance: 200 m/s² (0-2kHz)
- Operating temperature: -55°C to 415°C
- Rotor inertia: approximately 20 g·cm²
Buy the Buy TE Connectivity Hollow Shaft Resolver Part Number V23401U1016B110 Online
Enhance your automation system's precision with this high-quality hollow shaft resolver. Designed for industrial applications, it offers reliable performance at speeds up to 20,000 rpm and temperature ranges from -55°C to 415°C. With a 12.7 mm shaft diameter and robust construction, it ensures accurate angular measurement and stability under shock and vibration. Easy to integrate, this resolver is ideal for control systems requiring dependable feedback in demanding environments. Order online now and upgrade your machinery with confidence.
Order your TE Connectivity V23401U1016B110 hollow shaft resolver today and ensure accurate angular feedback in high-speed, high-temperature industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY V23401U1016B110?
You can click on the BUY or RFQ button to purchase V23401U1016B110 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part V23401U1016B110?
You can download the V23401U1016B110 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of V23401U1016B110?
TE CONNECTIVITY
