TE CONNECTIVITY X2200SPSM Heat Shrink Tubing
X2 heat-shrinkable tubing is a highly flame-retardant, environmentally friendly, crosslinked polyolefin designed for electrical insulation, strain relief, and protection in commercial applications. It offers excellent thermal stability, flexibility, and resistance to physical abuse with a full recovery temperature of 90°C and continuous operating range from -30°C to 125°C. UL and CSA recognized, it bundles wires, insulates connections, and provides reliable, quick, and easy installation for various wire harnesses and splices, suitable for long-term durable electrical protection.
TE CONNECTIVITY X2200SPSM Heat Shrink Tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Dimensions (fully recovered): Inside diameter varies from 0.44 mm to 10 mm, Wall thickness from 0.25 mm to 0.56 mm
- Material: Crosslinked polyolefin
- Color: Black
- UL Recognition: UL VW-1
- CSA Certification: CSA OFT
- Packaging: Spools
- Wall thickness: Less if shrinkage is restricted during recovery

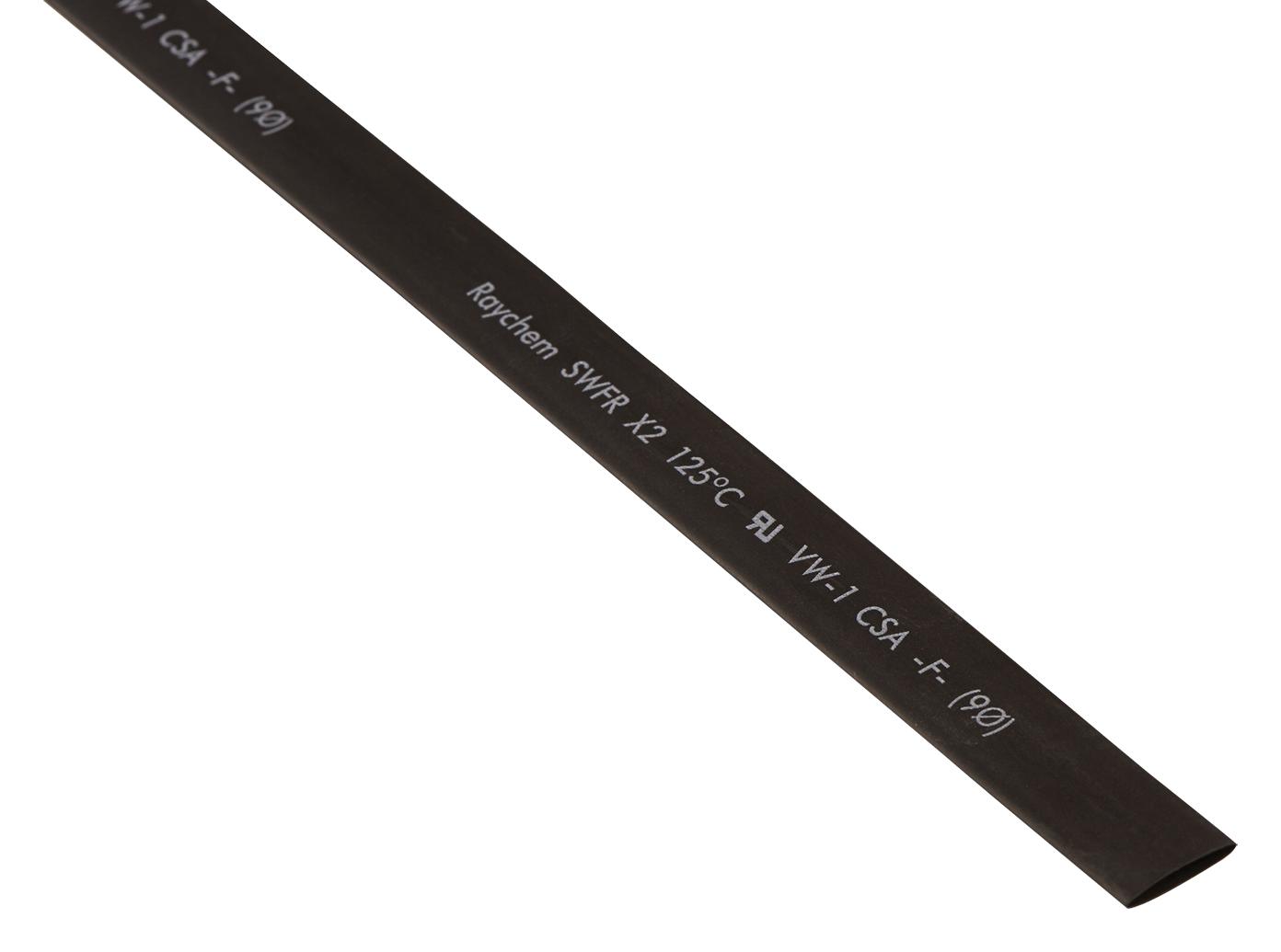

Buy the Raychem Series SWFR X2 Heat-Shrinkable Tubing: X2200SPSM
Experience the reliability and safety of Raychem heat-shrink tubing designed for electrical insulation, strain relief, and protection. Recognized by UL and CSA, X2 tubing is halogen-free, flame-retardant, and engineered for easy installation in demanding environments. It offers excellent thermal stability, flexibility, and physical resistance, ensuring long-term durability in wiring harnesses, splices, and industrial applications. Buy online today for dependable electrical protection that simplifies installation and enhances safety across your electrical systems.
Get Raychem SWFR X2 heat-shrinkable tubing today—designed for secure insulation and long-lasting durability in electrical applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X2200SPSM?
You can click on the BUY or RFQ button to purchase X2200SPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X2200SPSM?
You can download the X2200SPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X2200SPSM?
TE CONNECTIVITY
