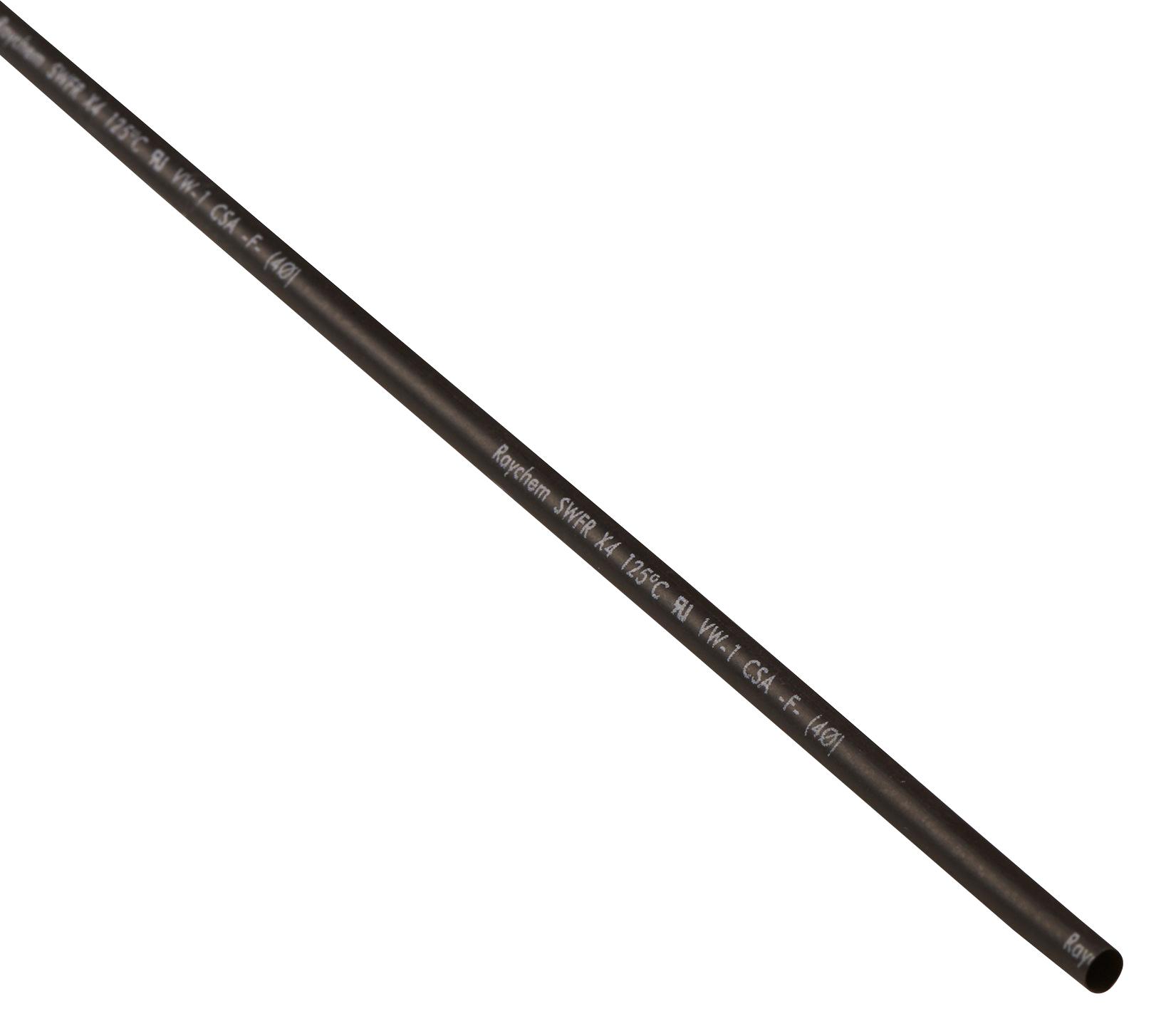

TE CONNECTIVITY X4300SPSM Heat-shrinkable tubing
SWFR X4 heat-shrinkable tubing is a very-thin-wall, flame-retardant, halogen-free polyolefin ideal for space-saving and environmentally friendly applications. It shrinks over twice as fast as standard tubing at 125°C and is UL-recognized and CSA-certified, meeting VW-1 flame-retardancy ratings. Suitable for wiring and component insulation, its flexible design allows rapid shrinking to prevent overheating of delicate parts. Operating between -30°C to 125°C, it features minimal wall thickness, making it perfect for tight spaces requiring quick, safe insulation.
TE CONNECTIVITY X4300SPSM Heat-shrinkable tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Dimensions (mm): Diameter ranges from 0.954 to 3.8; Wall thickness: 0.1 to 0.25 mm when supplied, 0.15 to 0.46 mm fully recovered
- Material: Polyolefin, flame-retardant VW-1 rated, halogen-free
- Color: Black
- Packaging: Spools
- UL Recognition: UL 224, UL VW-1
- CSA Certification: CSA OFT
Buy the Raychem X4300SPSM – Reliable Flame-Retardant Heat-Shrinkable Tubing for Industrial Applications
Purchase Raychem heat-shrinkable tubing X4300SPSM online for fast, secure insulation solutions. Designed for space-saving, flame-retardant, halogen-free applications, this tubing shrinks rapidly at 125°C with UL and CSA certifications. Its flexibility and minimal wall thickness make it ideal for protecting sensitive electronic components and wiring in tight spaces. Available on spools, it offers excellent flame resistance, environmental friendliness, and quick shrinkage, ensuring safe and efficient electrical insulation in industrial and commercial installations.
Get Raychem X4300SPSM today—built for quick, reliable insulation in industrial environments.
