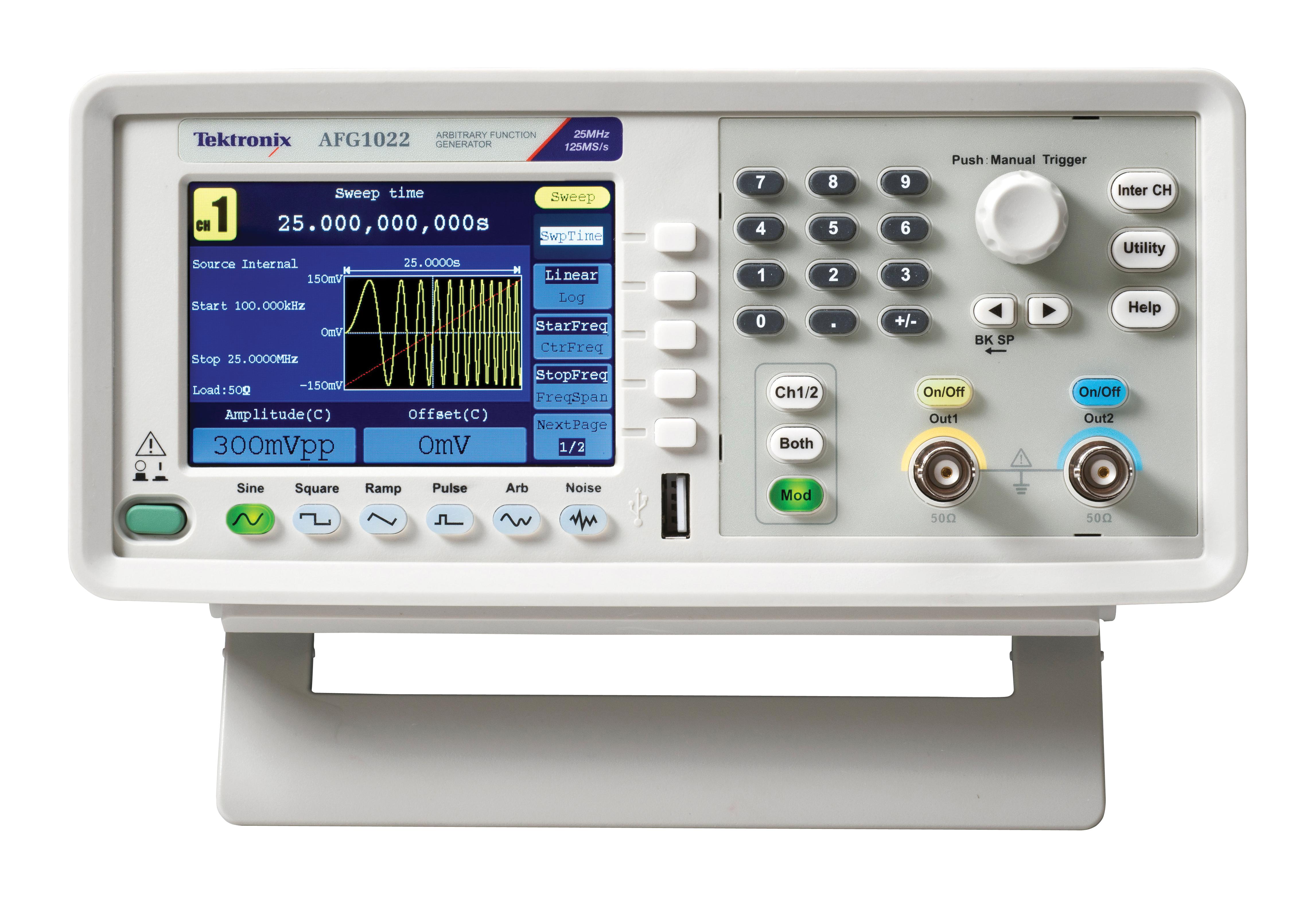

TEKTRONIX AFG1022 Arbitrary Function Generator
The AFG1022 Arbitrary Function Generator offers a cost-effective solution for waveform generation with dual channels, a 25 MHz bandwidth, and up to 10 V peak-to-peak output amplitude. It features four operational modes, 50 built-in standard waveforms, and a built-in 200 MHz frequency counter, accommodating most experimental and testing needs. The device includes a 3.95-inch TFT LCD touchscreen, shortcut buttons, USB interface, and PC software for intuitive configuration. Key specifications include a 125 MS/s sampling rate and 14-bit vertical resolution for high signal fidelity, as well as a user-defined waveform memory of up to 8,192 points stored in 64 MByte non-volatile memory. Standard USB ports support memory expansion and remote control. The compact design facilitates stacking with other bench instruments to save space. Additional features include user-friendly waveform editing with ArbExpress software and compatibility with TekSmartLab for educational purposes. Applications span industrial automation, wireless, power management, aerospace, audio, clock & timing, consumer electronics, defense, electronics design, and embedded development. The package includes safety instructions, documentation CD, power cord, calibration certificate, USB cable, BNC cables, and fuses. Calibration services are available, including standard or UKAS-accredited options.
TEKTRONIX AFG1022 Arbitrary Function Generator Specifications:
- Channels: Dual; Built-in waveforms: Sine, Square, Triangle, Ramp, Noise, Arbitrary
- Frequency Range: 1 μHz to 25 MHz
- Rise time: <12 ns
- Jitter: <6 ns
- Output amplitude: 10 Vp-p into 50 Ω, 20 Vp-p open circuit
- Vertical Resolution: 14 bits
- Sampling Rate: 125 MS/s
- Memory: 64 MByte non-volatile; Arbitrary waveforms up to 8192 points
- Display: 3.95-inch TFT LCD, 480x320, 65,536 colors
- Power Supply: 220-240 VAC / 100-120 VAC, 50/60 Hz
- Dimensions: 230 x 110 x 306 mm
- Weight: 3.4 kg
- Safety: UL 61010-1, EN 61326-1
Buy the Buy Tektronix AFG1022 Arbitrary Function Generator Part Number AFG1022 Online
Purchase the Tektronix AFG1022 Arbitrary Function Generator online and experience a versatile, dual-channel waveform source suitable for various testing and research applications. With a bandwidth of 25 MHz, 14-bit resolution, and 8K waveform memory, it provides high signal fidelity for precise experiments. Its user-friendly interface includes a color touchscreen, shortcut buttons, and USB support for easy setup and waveform editing via ArbExpress software. Compact and stackable, this generator is ideal for industrial, aerospace, and electronics testing, ensuring reliability, accuracy, and professional performance in all your waveform generation needs.
Get Tektronix AFG1022 today—built for precise waveform generation and long-lasting reliability.
