TENMA 72-6694 CAL D Datasheet & Stock

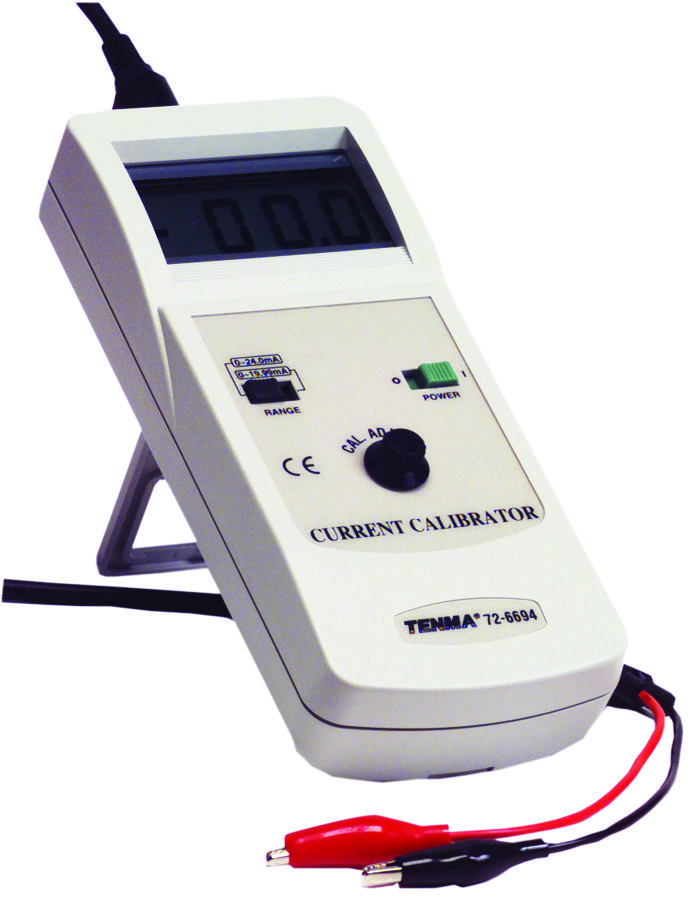

The 72-6694 CAL D from Tenma is a current calibrator. It provides quality and accuracy of handheld calibrator of precision current source. It features large LCD display (maximum display counts 1999, 13mm (0.5") digit size). The current calibrator has 006P DC 9V, MN1604/PP3 battery or equivalent alkaline type or heavy duty type power supply. The dimension is 185mm × 78mm × 38mm (7.3" × 3" × 1.5") and weight is 265g/0.58lb (including battery). It has adjustable 0 to 24mA current source, 2 ranges (0 to 19.99mA (0.01mA display resolution, ±(0.25% FS + 1d) accuracy), 0 to 24mA (0.1mA display resolution, ±(0.5% FS + 1d) accuracy).




Calibrated with data current calibrator

Portable instrument for calibrating process devices and measuring process signals

Current calibrator drives loads up to 500 ohm

Sampling time of 0.4second

Operating temperature range from 0°C to 50°C (32°C to 122°C)

Operating humidity of less than 80% RH

Over input indicator

12 month limited warranty *view Terms & Conditions for details





Applications


Test & Measurement
