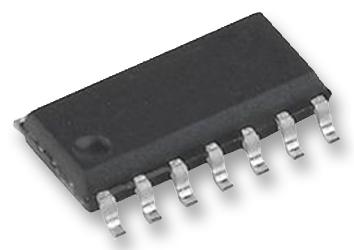

THAT CORPORATION THAT340S14U Low-Noise Transistor Array
The THAT340S14-U is a low-noise, matched bipolar transistor array featuring two matched NPN transistors and two matched PNP transistors arranged in a monolithic configuration. These transistors are designed with large geometry for high speed and excellent parameter matching, making them ideal for low-noise amplifier input stages, log amplifiers, and similar applications. Fabricated using a dielectrically isolated, complementary bipolar process, each transistor is electrically insulated from the others by an insulating oxide layer, providing low crosstalk and high DC isolation comparable to discrete transistors. The device does not require substrate biasing for normal operation; however, grounding the substrate can enhance speed and reduce crosstalk. It offers high-speed performance with low voltage noise, 500 microvolt matching between devices, and is suitable for audio, power management, and industrial uses. Please note that due to high market demand, lead times may be extended, and delivery dates can fluctuate. The product is not eligible for discounts.
THAT CORPORATION THAT340S14U Low-Noise Transistor Array Specifications:
- NPN Collector-Emitter Voltage: 36V
- PNP Collector-Emitter Voltage: -36V
- Maximum Junction Temperature: +125°C
- Operating Temperature Range: -40 to +85°C
- Collector Current: 30 mA
- NPN Gain-Bandwidth Product: 350 MHz
- PNP Gain-Bandwidth Product: 325 MHz
- Low Voltage Noise: 0.75 nV/ VHz (PNP), 0.8 nV/ VHz (NPN)
- Collector-Substrate Voltage: +100V
- Total Power Dissipation: Check manufacturer datasheet for specific package ratings
- Package: 14-Pin DIP or Surface Mount SOIC
- RoHS Compliant: Yes
- Lead-Free: Yes
- Soldering Profile: Reflow at 250°C as per JEDEC profile
- Thermal Resistance: approx. 100°C/W soldered to PCB
- Electrically insulated transistors with dielectrically isolated monolithic process
Buy the Buy THAT Corporation THAT340S14U Transistor Array Monolithic Low Noise Match
Enhance your electronic designs with the THAT340S14-U low-noise matched transistor array, featuring two NPN and two PNP transistors in a monolithic package. Optimized for high-speed, low-voltage noise applications such as low-noise input stages and log amplifiers, this device offers excellent parameter matching and low crosstalk thanks to dielectrically isolated fabrication. Its high-speed performance up to 350 MHz, combined with high DC isolation, makes it ideal for audio, instrumentation, and power management applications. Purchase online today for reliable, high-quality performance with fast delivery.
Buy THAT Corporation THAT340S14U now and experience unmatched reliability and performance for high-speed, low-noise amplification and industrial applications.
