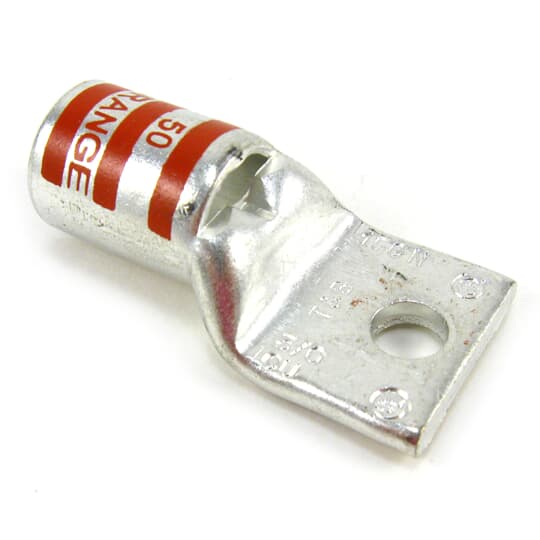

THOMAS & BETTS 54111NP Copper One-Hole Lug
The Thomas & Betts 54111NP is a robust copper one-hole lug designed for secure and reliable termination of electrical conductors. Its standard barrel construction and nickel-plated finish provide excellent corrosion resistance and electrical conductivity. Ideal for applications requiring a maximum voltage rating of 35kV and wire sizes up to 3/0 AWG, this lug is commonly used in industrial power distribution systems, electrical panels, and machinery connections. The integrated peep hole facilitates proper installation and ensures a secure connection.
THOMAS & BETTS 54111NP Copper One-Hole Lug Specifications:
- UNSPSC: 39121405
- IGCC: 4532
- Brand Name: Color-Keyed
- Type: Standard Barrel
- Stud Size: 3/8 in
- Number Of Holes: 1
- Voltage Rating: 35 kV
- Insulation: None
- Material: Copper
- Color: Orange
- ETIM: EC001051
- Connecting angle: Straight
- Slender flange model: N
- Insulated: N
- With sight-hole: Y
- Surface protection: Nickel-plated
- Inner Dimensions (inches): .32x.27x.22
- Outer Quantity: 10
- Outer Dimensions (inches): 3.3x2.8x2.3
- Weight Uom: 7 lbs. per 100
