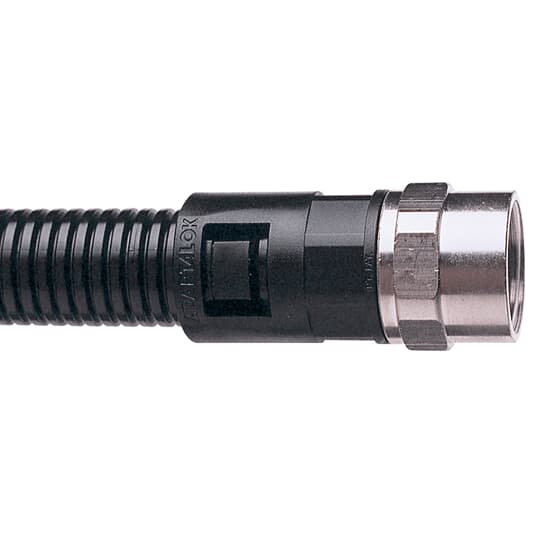

THOMAS & BETTS AL28M25SFABL Straight Conduit Fitting
The THOMAS & BETTS AL28/M25/SFA/BL is a straight conduit fitting suitable for connecting conduit in electrical installations. This fitting is designed for insertion into threaded entries or knockouts. It features a swivel internal female thread, allowing for flexibility during installation. Constructed with a polyamide (Nylon) 66 body and a nickel-plated brass thread, it provides durability and corrosion resistance. The fitting is ideal for applications requiring a secure and reliable conduit connection.
THOMAS & BETTS AL28M25SFABL Straight Conduit Fitting Specifications:
- UNSPSC: 39121311
- IGCC: 4441
- Brand Name: Adaptaflex
- Type: Conduit Fitting with Metric Threads
- Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
- Size: NC 28mm
- Material: Polyamide/Nylon 6.6
- Color: Black
- Connection: Straight
- Cable Entry: M25 Thread
- ETIM: EC001176
- Nominal diameter: 28mm
- Degree of protection (IP): IP66
- Model: Straight
- Revolving thread: Y
- Construction type: Internal thread
- Type of connection: Snap connection
- Thread type: Metric
- Thread connection size: M25 x 1.5
- Thread length: 17mm
- Total length: 34mm
- Total height: 63.8mm
- Approved in combination with protective conduit UR: Y
- Inner Quantity: 10
- Inner Dimensions (inches): 1.8x2x2
- Outer Quantity: 10
- Outer Dimensions (inches): 1.8x2x2
- Weight Uom: 0.14 lbs. Each
