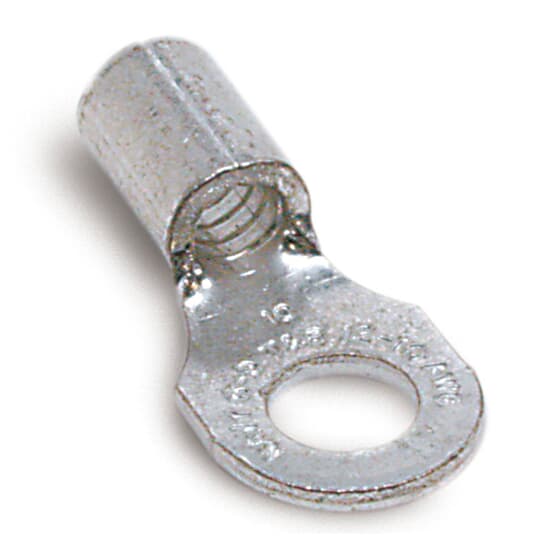

THOMAS & BETTS B85ML Non Insulated Ring Terminal
The THOMAS & BETTS B85ML non-insulated ring terminal is a versatile component used in a wide range of electrical applications, including automotive, industrial machinery, and control panels. Constructed from copper and finished with a tin plating, this terminal provides excellent conductivity and corrosion resistance. Its design accommodates wire sizes from #18 to #14 AWG, making it suitable for various wiring configurations. The terminal is packaged on a left feed reel mylar tape, streamlining the assembly process and ensuring consistent quality. For reliable and secure electrical connections, the B85ML offers a dependable solution.
THOMAS & BETTS B85ML Non Insulated Ring Terminal Specifications:
- catalog_number: B85ML
- product_id: 7TAI029550R0246
- upc_number: 06739601709
- wire_size: 18-14 AWG
- material: Copper
- surface_protection: Tin Plated
- bolt_hole: #6
- length: 0.75 Inches
- width: 0.31 Inches
- inner_quantity: 1000
- inner_dimensions: 2.12x15.12x15.12 inches
- outer_quantity: 5000
- outer_dimensions: 15.6x12.6x15.9 inches
- weight_uom: 12.5 lbs. per 1000
- unspc: 39121432
- igcc: 4603
- etim: EC001052
- flange_shape: Ring shape
- insulation: None
- reel_packaging: Yes
- awg_range: 18-14
