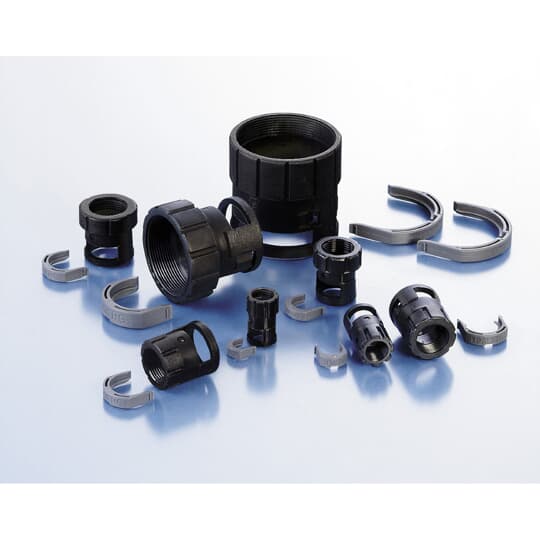

THOMAS & BETTS BFILP070 Black Female Threaded Adapter
The THOMAS & BETTS BFIL-P070 is a black polyamide 6 female threaded adapter used to connect nylon flexible conduits. It is designed for applications requiring a robust and environmentally sealed connection, such as in machinery, vehicles, and building construction. The adapter features a PG07 thread size and an IP67 rating, ensuring protection against dust and water ingress. It operates within a temperature range of -40°C to 105°C, with short-term exposure up to 160°C. It is approved for use with various protective conduits and standards including CSA, UR, DIN EN 61386-23, and Lloyd's Register.
THOMAS & BETTS BFILP070 Black Female Threaded Adapter Specifications:
- Product ID: 7TAA292610R0003
- UPC Number: 78620994542
- EAN Number: 07630030210334
- Material: Polyamide 6
- Thread Type: PG
- Thread Size: 07
- Nominal Width: 10
- IP Rating: IP67
- Temperature Rating: -40°C to 105°C
- Short Term Temperature: 160°C
- ETIM Model: Straight
- Revolving Thread: N
- Construction Type: External Thread
- Type of Connection: Snap
- Thread Length: 8mm
- Total Length: 34.5mm
- Color: Black
- Sealing: No sealing
- Weight Uom: 0.42 lbs
