THOMAS & BETTS BVBVP366 90 Degree Curved Elbow Connector

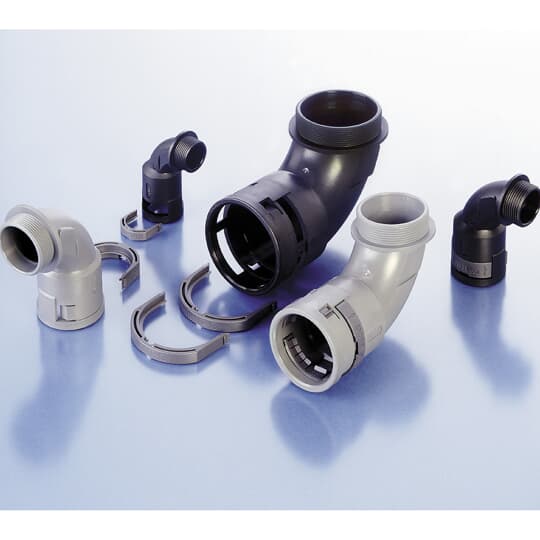

The Thomas & Betts BVBV-P366 is a robust 90-degree curved elbow connector specifically engineered for use with flexible conduits. Constructed from high-grade polyamide/nylon 6, it offers excellent durability and chemical resistance. The connector’s IP68 rating ensures protection against dust and water ingress, making it suitable for harsh environments. It utilizes a PG36 thread and is designed to fit conduit sizes NW36/40 metric, providing a secure and reliable connection. Commonly used in cable protection systems across diverse industries, the BVBV-P366 contributes to the safety and longevity of electrical installations.
THOMAS & BETTS BVBVP366 90 Degree Curved Elbow Connector Specifications:
- UNSPSC: 39131717
- IGCC: 5746
- Brand Name: PMA
- Type: Fittings for Nylon Flexible Conduits
- Application: For Cable Protection Systems
- Standard: CSA
- Material: High-Grade Specially Formulated Polyamide/Nylon 6
- Color: Black
- Size: PG36
- Trade Size: NW36/40 Metric
- Connection: 90 Degree
- ETIM: EC001176
- Degree of Protection: IP68
- Model: 90°-Bend
- Revolving Thread: N
- Construction Type: Internal Thread
- Type of Connection: Snap Connection
- Thread Type: Other
- Thread Connection Size: PG36
- Thread Material: Polyamide
- Thread Length: 13mm
- Total Length: 79mm
- Total Height: 123mm
- Approved in combination with protective Y conduit CSA: Yes
- Approved in combination with protective Y conduit UR: Yes
- Approved in combination with protective N conduit DIN EN 61386-23: Yes
- Lloyd's Register: Yes
- Operating Temperature: -40 - +105°C
- Inner Quantity: 20
- Outer Quantity: 40
- Weight Uom: 0.12 lbs. Each
