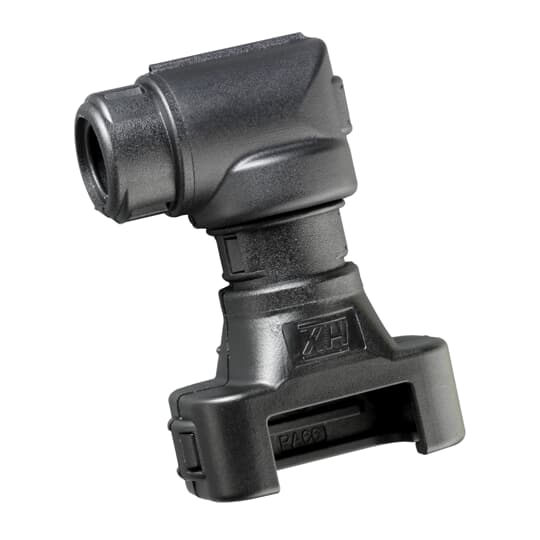

THOMAS & BETTS CI0890FCI04 Hinged Connector Interface Fitting
The THOMAS & BETTS CI08-90-FCI04 is a robust hinged connector interface fitting designed to provide a secure and reliable connection between connector interfaces and conduits. This fitting features a 90-degree elbow with a 360-degree swivel, offering flexibility in installation and orientation. It's constructed from polyamide (nylon) for durability and includes very high UV protection, making it suitable for demanding environments. The connector is RoHS compliant and rated IP40, ensuring protection against dust and solid objects. Ideal for automotive applications and other industrial settings requiring a secure and adaptable conduit connection.
THOMAS & BETTS CI0890FCI04 Hinged Connector Interface Fitting Specifications:
- Product ID: 7TCA298010R0177
- EAN Number: 05020963028755
- UNSPSC: 39121421
- IGCC: 4586
- Brand Name: Harnessflex
- Type: Hinged FCI Automotive Apex 2.8 Connector to Conduit
- Special Features: High Pull-Off Strength
- Application: Provide Connection Between Connector Interface and Conduit
- Standard: RoHS Compliant
- Size: Conduit Size NC08/NW7.5
- Connection: 90 Degree Elbow with 360 Degree Swivel, 4-Way Connection
- Material: Polyamide/Nylon
- Color: Black
- Insulation: IP40
- Temperature Rating: -40 to 120 Degrees C
- Environmental Conditions: Very High UV Protection
- Outer Quantity: 500
- Outer Dimensions: 1x1x1 inches
- Weight Uom: 0.02 lbs. Each
