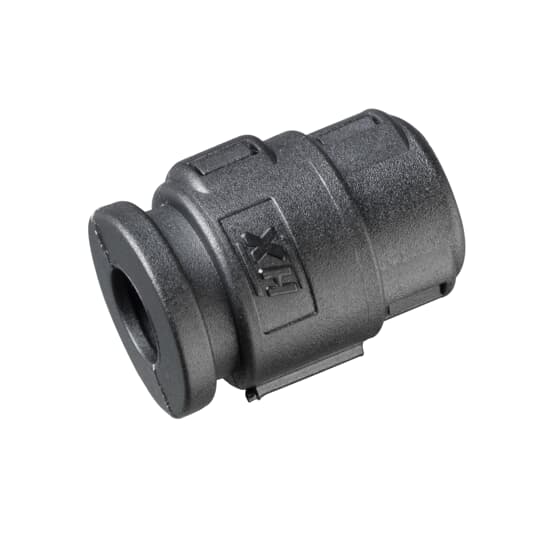

THOMAS & BETTS CI08AS3 Hinged Connector Interface Fitting
The THOMAS & BETTS CI08-AS3 is a hinged connector interface fitting, specifically an AS-AMP Superseal connector to conduit. This connector provides a robust and secure connection between connector interfaces and conduit systems. Constructed from polyamide (nylon), it offers excellent durability and resistance to environmental factors. The fitting is designed for a straight, 3-way connection, accommodating a conduit size of NC08/NW7.5. It boasts high pull-off strength, very high UV protection, and an IP40 rating, making it suitable for various industrial applications requiring reliable and protected connections. Operating temperatures range from -40 to 120 degrees Celsius, ensuring functionality in diverse environments.
THOMAS & BETTS CI08AS3 Hinged Connector Interface Fitting Specifications:
- UNSPSC: 39121421
- IGCC: 4586
- Brand Name: Harnessflex
- Type: Hinged AS-AMP Superseal Connector to Conduit
- Special Features: High Pull-Off Strength
- Application: Provide Connection Between Connector Interface and Conduit
- Standard: RoHS Compliant
- Size: Conduit Size NC08/NW7.5
- Connection: Straight, 3-Way Connection
- Material: Polyamide/Nylon
- Color: Black
- Insulation: IP40
- Temperature Rating: -40 to 120 Degrees C
- Environmental Conditions: Very High UV Protection
- Outer Quantity: 500
- Outer Dimensions (inches): 13x7x14
- Weight Uom: 0.5 lbs. per 100
