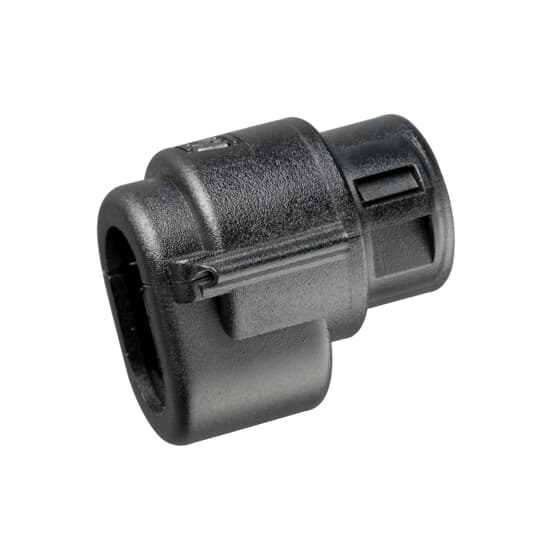

THOMAS & BETTS CI08BC3 Hinged Connector Interface Fitting
The THOMAS & BETTS CI08-BC3 is a hinged connector interface fitting designed to provide a secure connection between a connector interface and conduit. Constructed from polyamide (nylon), it offers very high UV protection and an IP40 rating. This connector is ideal for industrial applications requiring a robust and reliable connection, particularly where exposure to harsh environmental conditions is a concern. It supports a temperature range of -40 to 120 degrees Celsius and is RoHS compliant.
THOMAS & BETTS CI08BC3 Hinged Connector Interface Fitting Specifications:
- UNSPSC: 39121421
- IGCC: 4586
- Brand Name: Harnessflex
- Type: Hinged Bosch Compact Connector to Conduit
- Special Features: High Pull-Off Strength
- Application: Provide Connection Between Connector Interface and Conduit
- Standard: RoHS Compliant
- Size: Conduit Size NC08/NW7.5
- Connection: Straight, 3-Way Connection
- Material: Polyamide/Nylon
- Color: Black
- Insulation: IP40
- Temperature Rating: -40 to 120 Degrees C
- Environmental Conditions: Very High UV Protection
- Outer Quantity: 1000
- Outer Dimensions: 7x13x15 inches
- Weight Uom: 0.51 lbs. per 100
Buy the CI08-BC3 THOMAS & BETTS Hinged Connector Interface Fitting | myMectronic
Purchase the THOMAS & BETTS CI08-BC3 connector securely online and ensure reliable connections for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy THOMAS & BETTS CI08BC3?
You can click on the BUY or RFQ button to purchase CI08BC3 from an authorized THOMAS & BETTS distributor.
How do I troubleshoot issues or seek technical support for part CI08BC3?
You can download the CI08BC3 datasheet or visit the THOMAS & BETTS website for support.
Who is the manufacturer of CI08BC3?
THOMAS & BETTS
