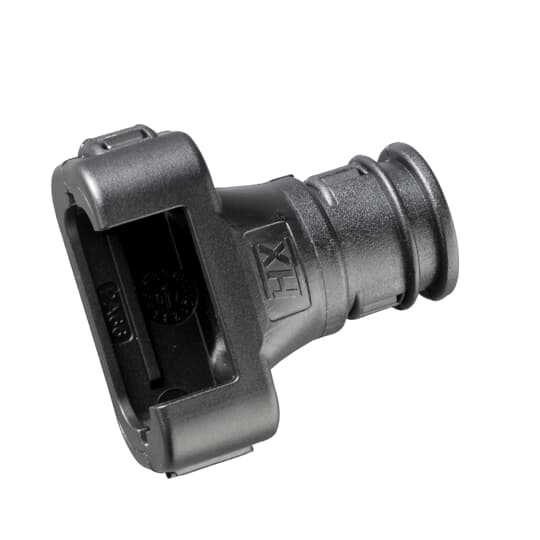

THOMAS & BETTS CI08FCI03 Hinged Connector Interface Fitting
The Thomas & Betts CI08-FCI03 is a hinged connector interface fitting specifically engineered for automotive applications utilizing the FCI Automotive Apex 2.8 connector system. This fitting facilitates a robust and reliable connection between the connector interface and conduit, ensuring a secure and protected electrical pathway. It boasts a straight, 3-way connection and is constructed from durable polyamide (nylon) material, providing excellent resistance to environmental factors. The fitting's design incorporates high pull-off strength for secure attachment and offers very high UV protection, making it suitable for demanding outdoor environments. It is RoHS compliant and features an IP40 rating for dust protection. The operating temperature range is -40 to 120 degrees Celsius, ensuring reliable performance across a wide range of conditions. This connector is ideal for applications requiring a durable and secure connection between connectors and conduits in automotive and related industries.
THOMAS & BETTS CI08FCI03 Hinged Connector Interface Fitting Specifications:
- UNSPSC: 39121421
- IGCC: 4586
- Brand Name: Harnessflex
- Type: Hinged FCI Automotive Apex 2.8 Connector to Conduit
- Special Features: High Pull-Off Strength
- Application: Provide Connection Between Connector Interface and Conduit
- Standard: RoHS Compliant
- Size: Conduit Size NC08/NW7.5
- Connection: Straight, 3-Way Connection
- Material: Polyamide/Nylon
- Color: Black
- Insulation: IP40
- Temperature Rating: -40 to 120 Degrees C
- Environmental Conditions: Very High UV Protection
- Outer Quantity: 500
- Outer Dimensions: 7x13x15 inches
- Weight Uom: 0.78 lbs. per 100
- 3D Model Availability: Available on Website
