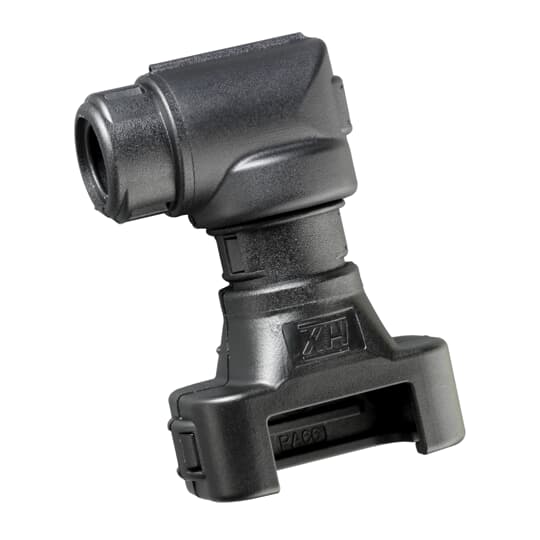

THOMAS & BETTS CI1290FCI04 Hinged Connector Interface Fitting
The Thomas & Betts CI12-90-FCI04 is a hinged connector interface fitting designed to provide a secure and reliable connection between connector interfaces and conduits. This fitting features a 90-degree elbow with a 360-degree swivel, offering flexibility in installation and orientation. It is specifically designed for automotive applications using the FCI Automotive Apex 2.8 connector system and is constructed from durable polyamide (nylon) for long-lasting performance. The fitting boasts high pull-off strength, very high UV protection, and an IP40 rating for environmental resistance. It is RoHS compliant and operates effectively within a temperature range of -40 to 120 degrees Celsius.
THOMAS & BETTS CI1290FCI04 Hinged Connector Interface Fitting Specifications:
- Product ID: 7TCA298010R0272
- EAN Number: 05020963024498
- Connector Type: Hinged FCI Automotive Apex 2.8 Connector to Conduit
- Conduit Size: NC12/NW10
- Operating Temperature: -40 to 120 Degrees Celsius
- IP Rating: IP40
- UV Protection: Very High
- Material: Polyamide (Nylon)
- Color: Black
- Connection Type: 90 Degree Elbow with 360 Degree Swivel, 4-Way Connection
- Pull-Off Strength: High
- Application: Connection Between Connector Interface and Conduit
- Standard: RoHS Compliant
- Outer Quantity: 500
- Outer Dimensions: 1x1x1 inches
- Weight: 0.01 lbs. Each
Buy the CI12-90-FCI04 THOMAS & BETTS Hinged Connector Interface Fitting | myMectronic
Purchase the CI12-90-FCI04 Thomas & Betts connector fitting securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy THOMAS & BETTS CI1290FCI04?
You can click on the BUY or RFQ button to purchase CI1290FCI04 from an authorized THOMAS & BETTS distributor.
How do I troubleshoot issues or seek technical support for part CI1290FCI04?
You can download the CI1290FCI04 datasheet or visit the THOMAS & BETTS website for support.
Who is the manufacturer of CI1290FCI04?
THOMAS & BETTS
