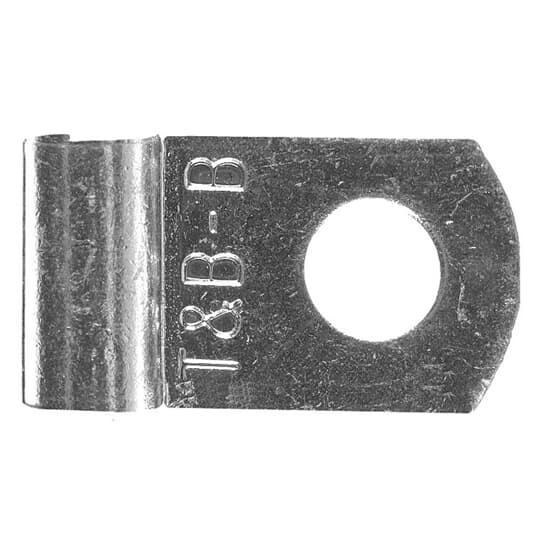

THOMAS & BETTS D226 Non-Insulated Flag Terminal
The THOMAS & BETTS D226 is a non-insulated flag terminal engineered for reliable connections in electrical systems. Its flag design allows for a 90-degree connection to terminal blocks, eliminating the need for wire bending. Constructed from tin-plated copper, the terminal provides excellent conductivity and corrosion resistance. Suitable for applications requiring wire ranges of #9, #8, and #7 AWG, the D226 is a versatile solution for various industrial and commercial settings. Refer to available online resources for tooling and application support.
THOMAS & BETTS D226 Non-Insulated Flag Terminal Specifications:
- Insulation Type: Non-Insulated
- Terminal Series: D
- Material: Copper
- Finish: Electro -Tin Plated
- Color: Metallic
- Wire Range: 9, 8, 7
- Stud Size: #10
- Stock Thickness: .06
- A (inches): .88
- B (inches): .50
- C (inches): .29
- M (inches): .64
- Temperature Rating: 150°C
- Flammability Rating: UL 94 V-0
- Tool Charts: Available on Website
- Application Tools: WT129, 13642M
- Recommended Tool: WT129
- T&B Order Multiple: 200
- T&B Inner Pack: 200
- Package in Units: 2000
- Package Type: Standard
- T&B Sold in UOM: Each
- T&B Weight Per UOM: 5 lbs. per 100
- Overview: Available on Website
- Wire Guide Tables: Available on Website
- Notes: Not available on Mylar Tape.
- RoHS Compliance: Yes
- File Nbr: E9809
