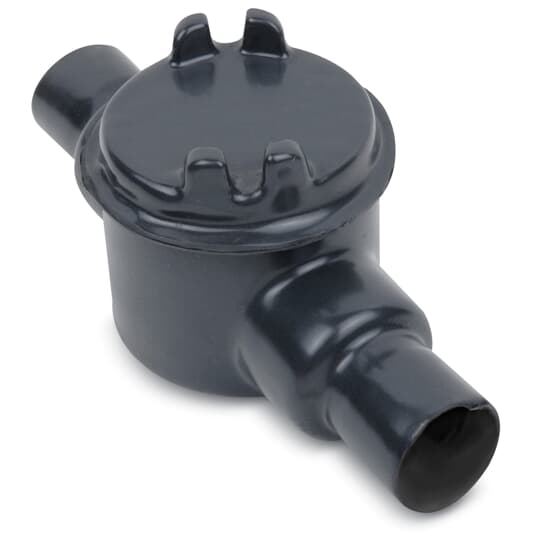

THOMAS & BETTS GUAC36G1 Hazardous Location Conduit Box
The THOMAS & BETTS GUAC36-G1 is a double-coat conduit box specifically engineered for installation in hazardous areas. Constructed with Grade 60-45-10 ductile iron bodies and cast aluminum covers, it offers exceptional durability and protection. This box serves multiple functions, including providing access to wiring, enabling directional changes in conduit, and acting as a mounting outlet for fixtures. It is explosion-proof, dust-ignition-proof, raintight, and suitable for use in Class I, Division 1 & 2, Groups C, D; Class II, Division 1, Groups E, F, G; and Class III, Division 1 & 2 environments, as well as NEMA 3, 4, 7 CD, and 9 EFG rated locations. The GUAC36-G1 is an essential component for maintaining electrical systems in hazardous industrial settings.
THOMAS & BETTS GUAC36G1 Hazardous Location Conduit Box Specifications:
- Grade: 60-45-10 ductile iron bodies and cast aluminum covers
- Coating: Nominal .002" (2 mil) blue urethane coating and nominal .040" (40 mil) PVC coating
- Listings: UL514A, UL886, CSA C22.2 No. 30
- Threads: minimum five full threads
- Bushing: integral bushing
- Sleeves: pressure-sealing sleeves
- Grounding: internal grounding screw
- Environments: Class I, Division 1 & 2, Groups C, D; Class II, Division 1, Groups E, F, G; Class III, Division 1 & 2; NEMA 3, 4, 7 CD, 9 EFG
Buy the GUAC36-G1 THOMAS & BETTS Hazardous Location Conduit Box | myMectronic
Purchase the THOMAS & BETTS GUAC36-G1 Hazardous Location Conduit Box securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy THOMAS & BETTS GUAC36G1?
You can click on the BUY or RFQ button to purchase GUAC36G1 from an authorized THOMAS & BETTS distributor.
How do I troubleshoot issues or seek technical support for part GUAC36G1?
You can download the GUAC36G1 datasheet or visit the THOMAS & BETTS website for support.
Who is the manufacturer of GUAC36G1?
THOMAS & BETTS
