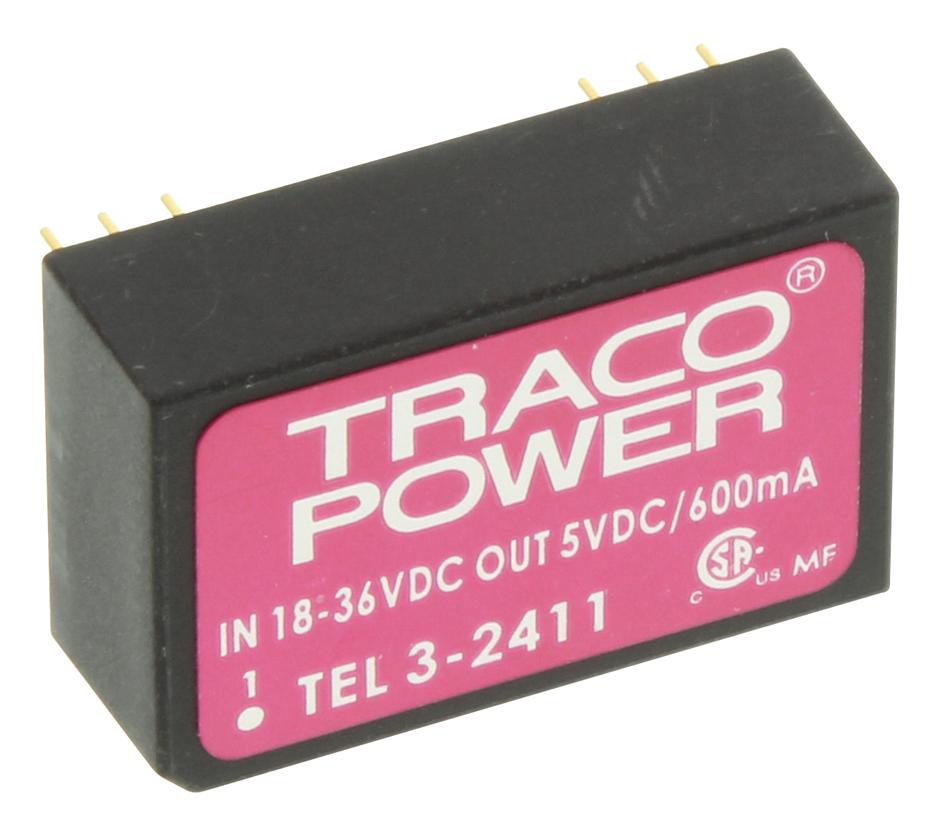

TRACO POWER TEL32411 DC/DC Converter
The TEL 3 series comprises 3 Watt isolated DC/DC converters in DIL-24 package, offering wide 2:1 and 3:1 input voltage ranges. They feature high efficiency up to 81%, low output noise, and operate at temperatures from -40°C to +85°C. These economical converters provide 1500 VDC isolation, short-circuit protection, and are suitable for industrial and consumer electronics. They come in various input-output configurations, deliver up to 600 mA, and are compliant with safety standards UL 60950-1 and IEC/EN 60950-1, making them ideal for compact, reliable power supply applications.
TRACO POWER TEL32411 DC/DC Converter Specifications:
- Input voltage range: 4.5-9.0 VDC, 5 VDC, 12 VDC, 15 VDC, 18-36 VDC, 24 VDC, 36-75 VDC, 48 VDC, 20 VDC
- Output voltages: 5 VDC, 12 VDC, 15 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC, 48 VDC
- Output current max.: 600 mA, 250 mA, 200 mA, 125 mA
- Efficiency: up to 81%
- Input current (full load): 80-820 mA depending on model
- Surge voltage: 11-100 VDC depending on model
- Isolation voltage: 1500 VDC
- Operating temperature: -40°C to +85°C
- Humidity: 95% rel H max
- Switching frequency: 300 kHz typ.
- Dimensions: approx. 30.5 mm x 10.2 mm x 11 mm, non conductive plastic casing, epoxy potting
- Safety standards: UL 60950-1, IEC/EN 60950-1
Buy the TracoPower Series TEL3 DC/DC Converter: TEL32411
Purchase the TracoPower TEL32411 DC/DC converter online now and secure a reliable power solution for your industrial or electronics project. Designed with high efficiency up to 81%, wide input voltage ranges, and low noise operation, this 3 Watt isolated converter offers exceptional performance. Its compact DIL-24 package ensures easy integration into space-constrained designs, providing dependable power with 1500 VDC isolation and short-circuit protection. Ideal for applications demanding stability, compactness, and safety compliance, order today for quick delivery and superior quality.
Get TracoPower TEL32411 today—built for precision and long-lasting durability in compact power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TEL32411?
You can click on the BUY or RFQ button to purchase TEL32411 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL32411?
You can download the TEL32411 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL32411?
TRACO POWER
