TRACO POWER TEN 20-2411WIN Datasheet & Stock

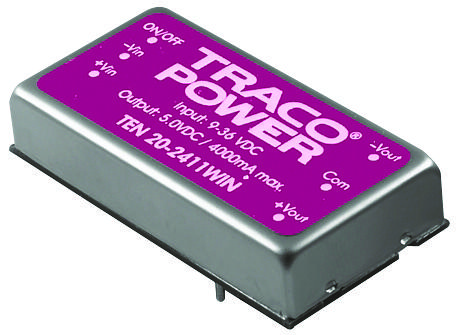

The TEN 20-2411WIN from Tracopower is a single output, 20W DC to DC converter. This module has an ultra wide 4:1 input voltage ranges in a ultra compact 2" x 1" low profile package. This module functions with remote On/Off, output voltage trimming, overvoltage protection and short-circuit protection. Typical applications for this converter are battery operated equipment, mobile instrumentation, distributed power architectures in communication and industrial electronics and everywhere where isolated, tightly regulated voltages are required.




Input voltage range from 9VDC to 36VDC

Output voltage is 5VDC

Output current is 4A

Typical efficiency is 88%

I/O isolation is 1.5KVDC

Operating temperature range from -40°C to 85°C

No minimum load required

Industry standard footprint

Shielded metal case with insulated baseplate

UL 60950-1, EN/IEC 60950-1 safety standards certified





Applications


Industrial,

Power Management
