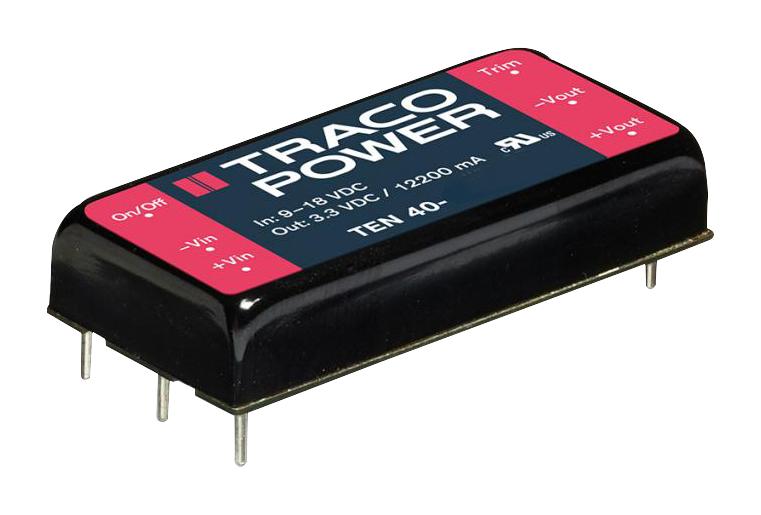

TRACO POWER TEN404822E DC/DC Converter
The TEN 40E series is a 40-watt DC/DC converter engineered for industrial applications requiring high efficiency, reliable performance, and safety standards. Featuring a compact 2"x1" metal enclosure with a 2:1 input voltage range (9-18 V, 18-36 V, 36-75 VDC), its advanced design ensures up to 93% efficiency and operating temperatures from -40°C to +85°C. It includes features like remote on/off, overvoltage, overtemperature, short-circuit protection, and 1600 VDC I/O isolation, making it ideal for demanding environments.
TRACO POWER TEN404822E DC/DC Converter Specifications:
- Power: 40 W
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V, -12 V, -15 V, -24 V
- Input Current: 20 mA (no load at 12 V), 15 mA (24 V), 10 mA (48 V)
- Surge Voltage: 25 V (12 V input), 50 V (24 V input), 100 V (48 V input)
- Operating Temperature Range: -40°C to +85°C
- Isolation Voltage: 1600 VDC (input-output), 1131 VAC (input/case, output/case)
- Efficiency: Up to 93%
- Dimensions: 2" x 1" x 0.37" (approximate), housing material: Copper
- Protection: Short circuit, overvoltage, overtemperature; remote on/off
- MTBF: 1,245,000 hours
- Cooling: Natural convection
- Certification: UL 62368-1, IEC 62368-1, EN 62368-1
- EMC Compliance: EN 55032 class A/B, EN 61000-4-2/-3/-4/-5/-6/-8
Buy the Traco Power Series TEN 40E DC/DC Converter: TEN404822E
Purchase the Traco Power Series TEN 40E 40 Watt DC/DC converter online today and benefit from a compact, high-efficiency power solution with a wide input range, built-in safety features, and outstanding reliability. Designed for industrial environments, it offers remote on/off, overvoltage, and overtemperature protection, ensuring your applications operate safely and efficiently. With UL and IEC certifications, this converter is ideal for demanding engineering projects needing consistent performance, robust safety standards, and easy integration into various systems. Get yours now for dependable power supply performance!
Order your Traco Power Series TEN 40E 40 Watt DC/DC Converter today and give your industrial projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy TRACO POWER TEN404822E?
You can click on the BUY or RFQ button to purchase TEN404822E from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN404822E?
You can download the TEN404822E datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN404822E?
TRACO POWER
