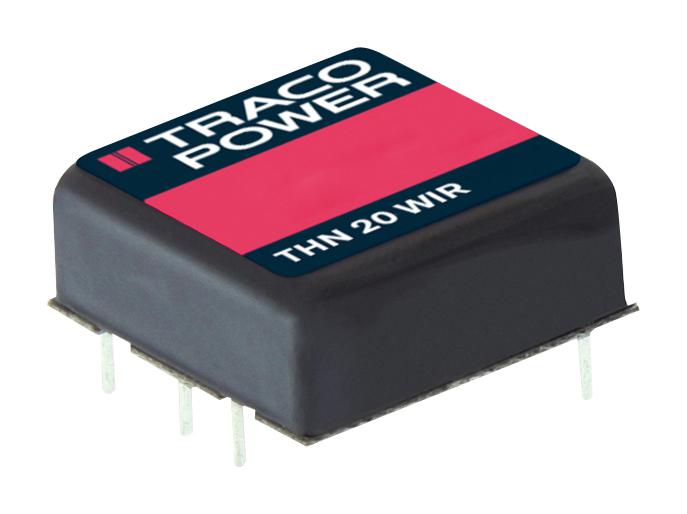

TRACO POWER THN204812WIR DC/DC Converter
The THN 20WIR series is a rugged 20 Watt DC/DC converter designed for reliability in harsh environments, featuring a compact 1” x 1” metal package, high efficiency up to 91%, and wide input voltage range from 9-36V, 18-75V, or 36-160V DC. It meets rail and transportation standards EN 50155 and EN 61373, with added fire qualification according to EN 45545-2 and safety standards IEC/EN 62368-1. The converter provides overload, overvoltage, short circuit protection, remote on/off, and voltage trimming, suitable for industrial, railway, and automation applications.
TRACO POWER THN204812WIR DC/DC Converter Specifications:
- Input Range: 9-36V, 18-75V, 36-160V DC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, -12V, -15V, -24V
- Output Power: 20 Watts
- Efficiency: Up to 91%
- Operating Temperature: -40°C to +65°C without derating
- Isolation Voltage: 3000 VDC input-output isolation
- Protection: Overload, overvoltage, short circuit protection
- Remote On/Off, Output Voltage Trim
- Dimensions: 1” x 1” metal package
- Certification: EN 50155, EN 61373, EN 45545-2 fire qualification, IEC/EN 62368-1 safety
- Ripple & Noise: 75-125 mVp-p depending on model
- Start-up Time: 30 ms typical
- Isolation Resistance: 17,000 MΩ
- Vibration: MIL-STD-810F, EN 61373
- Housing Material: Copper, silicone potting, UL94 V-0 rated plastic
- Weight: 16 g
- Operating Altitude: up to 2000 m
- Switching Frequency: 270-330 KHz
Buy the Buy Traco Power DC/DC Converter Part Number THN204812WIR Online
Purchase the Traco Power THN 20WIR series online today to benefit from cutting-edge design, high efficiency, and rugged construction. Perfect for industrial, transportation, and automation applications, this 20-watt converter offers wide input voltage ranges from 9 to 160VDC, ensuring reliable performance in demanding environments. Its certification for railway standards EN 50155 and EN 61373, along with fire safety qualification EN 45545-2, makes it suitable for critical infrastructure projects. With built-in protection features like overload, overvoltage, and short circuit protection, remote control, and voltage trimming, this converter guarantees robust and flexible power management for your applications.
Buy Traco Power THN 20WIR converter now and experience unmatched reliability and efficient power conversion in harsh environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN204812WIR?
You can click on the BUY or RFQ button to purchase THN204812WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN204812WIR?
You can download the THN204812WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN204812WIR?
TRACO POWER
