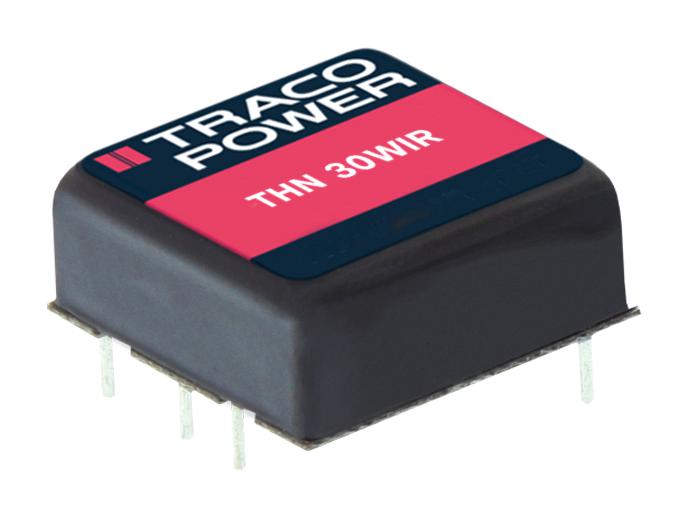

TRACO POWER THN302412WIR DC/DC Converter
The THN 30WIR series consists of DC/DC converters engineered for high reliability in demanding environments. Offering an output power of 30 Watts, these converters are part of a range of EN 50155 railway-certified, wide input voltage range (1x1) DC/DC modules. Encased in a fully shielded metal enclosure on all six sides, they provide excellent protection against electromagnetic interference. Their complete encapsulation ensures maximum resistance to thermal shocks, mechanical shocks, and vibration. With a power conversion efficiency of up to 91%, the THN 30WIR can operate continuously at ambient temperatures between -40°C and +65°C without derating or additional cooling, depending on the model. Certified for mechanical shock, vibration, and fire behavior (EN 61373, EN 45545-2), and approved under IEC/EN/UL 62368-1 safety standards, these modules feature a wide 4:1 input voltage range, up to 3000 VDC I/O isolation, remote on/off and trim functions, as well as protections against undervoltage lockout, short circuits, overvoltage, and overtemperature. The product comes with a 3-year warranty.
TRACO POWER THN302412WIR DC/DC Converter Specifications:
- Power: 30 Watts
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power Efficiency: Up to 91%
- Input Voltage Surge: 50 VDC max. (1 s); 100 VDC max. (1 s); 185 VDC max. (1 s)
- Operating Temperature Range: -40°C to +65°C without derating
- Isolation Voltage: Up to 3000 VDC input/output isolation
- Vibration Resistance: EN 61373 certified for shock and vibration
- Fire Safety: EN 45545-2 certified
- Efficiency: Up to 91%
- Protection: UVLO, SCP, OVP, OTP
- Encapsulation: Fully sealed metal enclosure, EMI shielding
- Certifications: EN 50155, IEC/EN/UL 62368-1, RoHS, Reach
- Dimensions: 1”x1” metal package
- Cooling: Natural convection
- Remote Control: On/Off, trim functions
- Warranty: 3 years
Buy the Buy Traco Power DC/DC Converter Part Number THN302412WIR Online
Experience the high reliability of the Traco Power DC/DC converter with 30 Watts of power, fully encapsulated in a rugged metal package. Ideal for railway and industrial applications, it features a wide input voltage range, high efficiency up to 91%, and comprehensive protections including UVLO, SCP, OVP, and OTP. Certified for fire safety and vibration resistance, it ensures continuous operation in harsh environments. Purchase online today and rely on this robust, safety-compliant power module with a three-year warranty for your critical applications.
Buy Traco Power THN 30WIR now and experience unmatched reliability and industry-grade safety in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN302412WIR?
You can click on the BUY or RFQ button to purchase THN302412WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN302412WIR?
You can download the THN302412WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN302412WIR?
TRACO POWER
