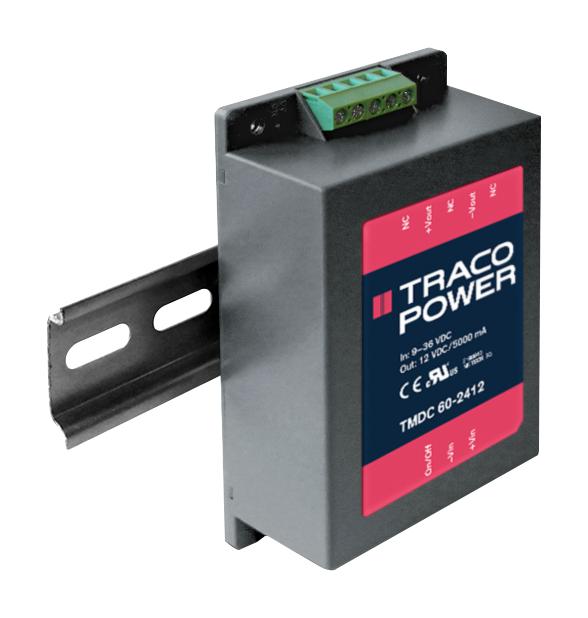

TRACO POWER TMDC602412 Industrial Power Converter
The TMDC 60-2412 from TracoPower is a 60W high-performance, single-output DC-DC converter module housed in a fully encapsulated, low-profile plastic case. It offers chassis mount with screw terminals or PCB mounting options. The converter features a wide input voltage range of 9VDC to 36VDC, with an output voltage of 12VDC and a maximum current of 5A. It provides high efficiency of approximately 91% at a switching frequency of 285 kHz and does not require a minimum load for operation. The module includes features such as remote on/off, short circuit, overload protection, and a LED indicator for power good. It also supports high electromagnetic compatibility standards, including EN 55024 and EN 61000-4-2 (ESD protection up to ±8kV air, ±4kV contact). The device offers input-output isolation of 2,500VDC (for 60 seconds), with an isolation resistance exceeding 1 GΩ and maximum capacitance of 3,000 pF. Operating temperature range is from -40°C to 85°C. Optional DIN rail mounting is available. The converter is compliant with UL/cUL 60950-1, IEC 60950-1:2005, and CSA C22.2 No. 60950-1-07 standards. Suitable for power management and industrial applications.
TRACO POWER TMDC602412 Industrial Power Converter Specifications:
- Power: 60 Watts
- Input Voltage Range: 9VDC to 36VDC
- Output Voltage: 12VDC
- Output Current Max: 5A
- Efficiency: approximately 91%
- Switching Frequency: 285 kHz
- Input-Output Isolation: 2,500VDC for 60 seconds
- Isolation Resistance: >1 GΩ
- Input Surge Voltage: 50V (24V) or 100V (48V)
- Operating Temperature Range: -40°C to 85°C
- Dimensions: Not specified (available in datasheet)
- Protection: Short circuit, overload, remote on/off, LED power good indicator
- EMC Compliance: EN 55024, EN 61000-4-2 (ESD up to ±8kV air, ±4kV contact), FCC Part 15 Class A
- Certifications: UL/cUL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-07
- Weight: 300 g
- Housing: Fully encapsulated plastic resin (UL 94V-0 rated)
- Mounting: Chassis or optional DIN rail
Buy the TracoPower TMDC602412 – Reliable Industrial Power Supply for Power Management
Purchase the TracoPower high-performance industrial power converter online today. With its wide input range, high efficiency of 91%, and multiple protections including short circuit and overload, this 60W converter ensures reliable power delivery for industrial systems. Its compact, encapsulated design, along with optional DIN rail mounting, makes installation flexible and straightforward. Supporting advanced EMC standards and offering electrical isolation of 2,500VDC, this converter is ideal for power management, automation, and industrial control applications. Secure your power needs now with quick online ordering.
Buy TracoPower TMDC602412 now and experience unmatched reliability and performance in industrial power applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC602412?
You can click on the BUY or RFQ button to purchase TMDC602412 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC602412?
You can download the TMDC602412 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC602412?
TRACO POWER
