TRACO POWER TMDC 60-2418 Datasheet & Stock

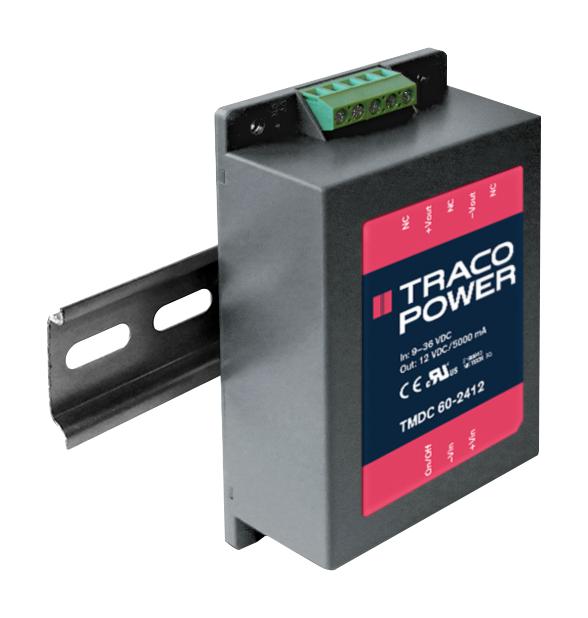

The TMDC 60-2418 from Tracopower is a 60W high performance single output DC to DC converter module in fully encapsulated low profile plastic case. This converter comes in chassis mount with screw terminal or PCB versions. It has 4:1 input voltage range and a tight output voltage regulation with hiccup mode, automatic recovery short circuit protection. This converter does not need a minimum load and offer a high efficiency at low load conditions. Remote on/off and protection against overload and short circuit are standard features of this converter. The TMDC 60-2418 has EN 55024, EN 61000-4-2, air ±8KV, contact ±4KV (criteria A) ESD protection.




Input voltage range from 9VDC to 36VDC

Output voltage of 48VDC and maximum output current of 1250mA

Efficiency of 91% and switching frequency of 285KHz

Maximum surge voltage of 50V

Power good LED indicator & input polarity protection

I/O isolation voltage of 2500VDC (60sec)

Greater than 1000Mohm I/O isolation resistance, maximum I/O isolation capacitance of 3000pF

Operating temperature range from -40°C to 85°C

Optional DIN rail mount adapter

UL/cUL 60950-1, IEC 60950-1:2005 and CSA C22.2 number 60950-1-07 approved





Applications


Power Management,

Industrial
