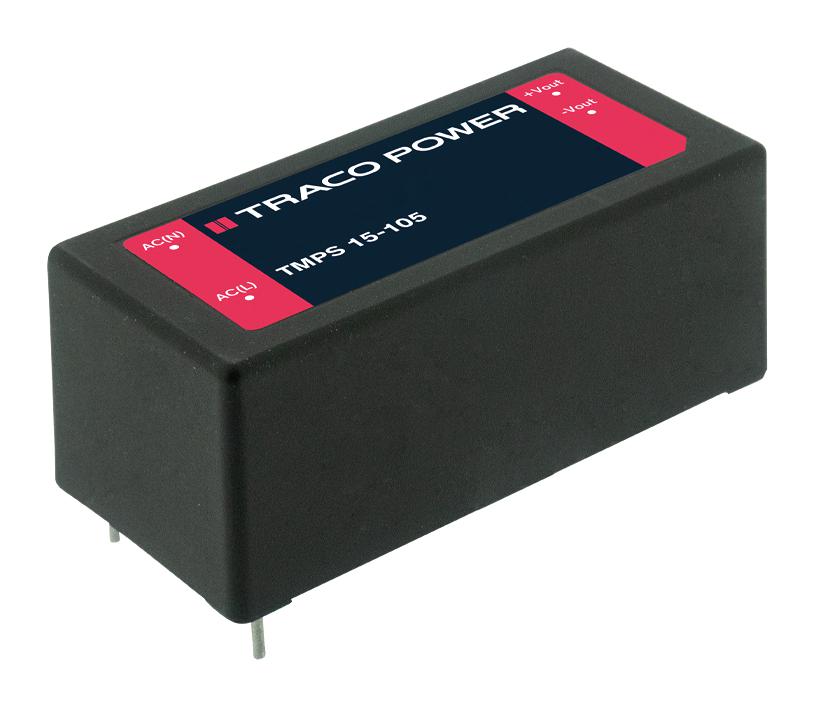

TMPS 15 is a series of fully encapsulated AC/DC power supplies for household, building automation and industrial applications. Thanks to its very low no-load power consumption of 100mW, the TMPS 15 meets the ErP directive for energy efficient devices of the European Union. All TMPS 15 power supplies are prepared for protection class II applications and come with an integrated EN 55032 class B EMI filter. The reinforced isolation, high power density and excellent peak power capability, makes the TMPS 15 a first choice for demanding applications. It complies with EN 62368-1, IEC 62368-1, UL 62368-1, EN 60335-1, IEC 60335-1, EN 61558-2-16, IEC 61558-2-16. It features protection class I & II (prepared): reinforced insulation, pollution degree PD 2 and overvoltage category OVC II.




Fully encapsulated 1.07” x 2.06” x 0.93” package

ErP-ready (100mW no-load power)

EN 60335 certified (household)

UL 62368-1 certified (IT and industrial)

Operating temperature range from -25°C to +70°C

130% peak power (for up to 30s), switching frequency 94 - 125KHz (PFM), 115KHz typ (PFM)

Integrated class B EMI filter, 4000VAC I/O isolation (reinforced)

3-year product warranty

Continuous automatic recovery short circuit protection and foldback mode overload protection

Plastic resin (UL 94 V-0 rated) housing material and silicone (UL 94 V-0 rated) potting material
