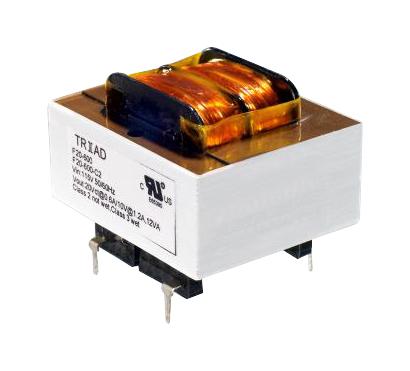

TRIAD MAGNETICS F24800C2 Industrial Power Transformer
The F24-800-C2 transformer features a split bobbin design with one primary winding at 115V and dual secondaries at 12V @ 0.8A each. Designed for flexibility, the secondaries can operate independently, series, or parallel, offering versatile voltage and current options. It boasts a maximum power of 20VA, with UL Class F insulation, and low capacitive coupling for reduced interference. Suitable for various industrial applications, it is RoHS compliant, tested for safety, and constructed for durability with a compact, lightweight design ideal for control and automation systems.
TRIAD MAGNETICS F24800C2 Industrial Power Transformer Specifications:
- Maximum Power: 20.0VA
- Primary Voltage: 115V
- Secondary Voltage: 12V @ 0.8A each
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 25°C TYP
- Hipot Test: 4200 VRMS pri to sec, 2160 VRMS sec to sec
- Construction: Three flange bobbin, low capacitive coupling
- Insulation System: UL Class F (155°C)
- Dimensions: 1.516 x 1.910 x 2.284 inches (varies slightly)
- Weight: 0.80 lbs
- RoHS Compliant: Yes
- Agency Certification: UL, cUL
- Fuse Rating: 500mA, 250V (primary side)
Buy the Triad F24-800-C2 – Reliable Industrial Power Transformer for Control and Automation
Purchase the Triad F24-800-C2 transformer online today and enjoy a reliable power solution for your industrial control and automation needs. With versatile wiring options, UL and cUL certifications, and RoHS compliance, this transformer provides safety, efficiency, and durability. Its split bobbin design reduces interference, making it ideal for sensitive applications. Compact and lightweight at only 0.80 lbs, it fits easily into various control panels and equipment. Order now to ensure quality and trustworthy performance in your projects.
Order your Triad Series F24-800-C2 transformer today and ensure your control systems operate with dependable, compact power solutions.
