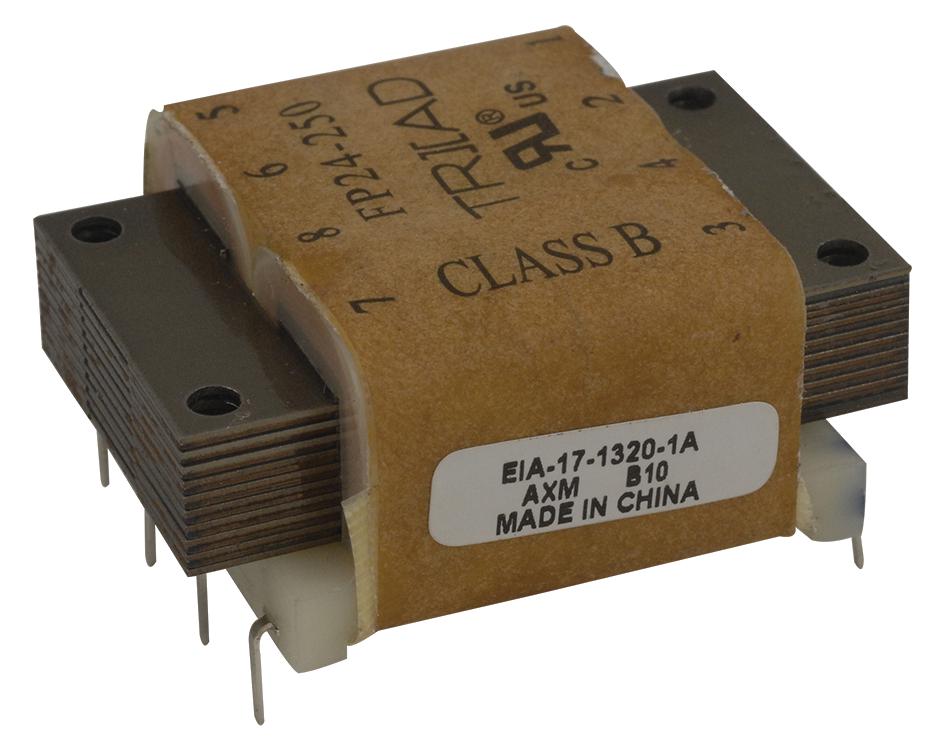

TRIAD MAGNETICS FP24250 Power Transformer
The FP24-250 is a 6VA PC-mount Flat Pack™ power transformer featuring a 230V series primary and a 115V parallel primary operating at 50/60Hz, with a 24V center-tapped (CT) secondary rated at 0.25A and a 12V secondary rated at 0.5A in parallel. It is constructed using proven design principles and UL-recognized materials. The transformer is 100% high-potential (hi-pot) tested with 2000V insulation between primary and secondary windings, and 1500V between the windings and the core. It is wound on two dual-channel nylon bobbins and rated for 130°C Class B insulation.
TRIAD MAGNETICS FP24250 Power Transformer Specifications:
- Maximum Power: 6.0 VA
- Primary Voltage (Series): 230V@50/60Hz
- Primary Voltage (Parallel): 115V@50/60Hz
- Secondary (Series): 24.0VCT @ 0.250 Amps
- Secondary (Parallel): 12.0V @ 0.500 Amps
- Construction: Wound on two dual-channel nylon bobbins
- Insulation: UL recognized, Class B (130°C)
- Hi-Pot Testing: 2000V between primary and secondary, 1500V between windings and core
- Dimensions: In inches, weight 7 oz, pin size .020 x .041 in
- RoHS Compliant: As of February 2005, meets 2011/65/EU requirements
Buy the Buy Triad Power Transformer Part Number FP24250 Online
Order the Triad FP24-250 power transformer online today for reliable performance in your electrical projects. With a 6VA capacity, UL recognition, and a durable construction using UL materials, this transformer features a 230V primary, a 115V primary, and a 24V CT secondary rated at 0.25A. Its high-quality design ensures safety and performance, with 2000V hi-pot testing and insulation rated for 130°C. Perfect for industrial, commercial, or DIY use, offering long-lasting durability and efficient operation.
Get Triad FP24250 today—robust 6VA power transformer with UL recognition and proven safety standards.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS FP24250?
You can click on the BUY or RFQ button to purchase FP24250 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part FP24250?
You can download the FP24250 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of FP24250?
TRIAD MAGNETICS
