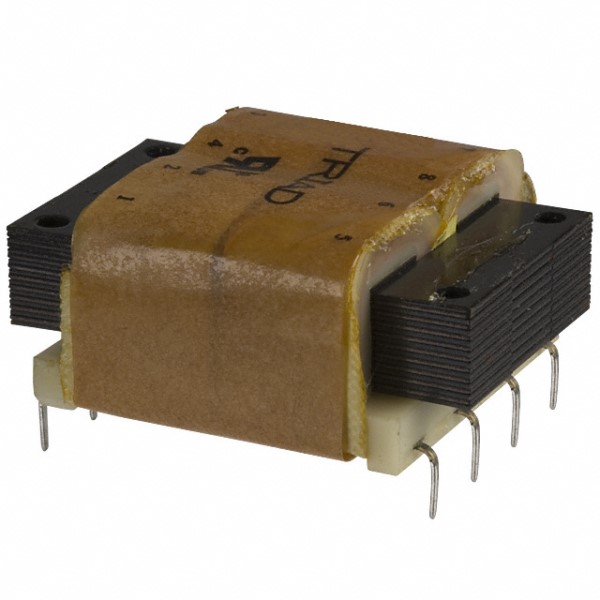

TRIAD MAGNETICS FP34170 Power Transformer PC Mount
The TRIAD MAGNETICS FP34-170 is a power transformer within a series known for its long history of reliable service. Constructed with UL recognized Class B (130°C) rated materials and wound on a dual channel nylon bobbin, this transformer delivers consistent performance. It undergoes rigorous 100% hipot testing to ensure insulation integrity between windings and the core. The FP34-170 is RoHS compliant and suitable for a wide range of applications requiring a dependable power source.
TRIAD MAGNETICS FP34170 Power Transformer PC Mount Specifications:
- Maximum Power: 6.0 VA
- Primary Voltage Series: 230V@50/60 Hz
- Primary Voltage Parallel: 115V@50/60Hz
- Secondary Voltage Series: 34.0VCT @ 0.170Amps
- Secondary Voltage Parallel: 17.0V @ 0.340 Amps
- Insulation: 2000V between primary and secondary windings
- Pin Dimension: .020 x .041 in
- Weight: 7.0 oz
- UL File: E53148
- UL Standard: UL 506, Class B
- Canadian Use: cUL File E53148, UL 506, Class B
- Dimensions A: 1.875 in
- Dimensions B: 1.562 in
- Dimensions C: 0.875 in
- Dimensions D: 0.267 in
- Dimensions E: 0.375 in
- Dimensions F: 1.600 in
Buy the FP34-170 TRIAD MAGNETICS Power Transformer PC Mount | myMectronic
Purchase the TRIAD MAGNETICS FP34-170 Power Transformer PC Mount securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS FP34170?
You can click on the BUY or RFQ button to purchase FP34170 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part FP34170?
You can download the FP34170 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of FP34170?
TRIAD MAGNETICS
