TRIAD MAGNETICS TCT312E07AE Control Transformer
This control transformer offers safe and reliable power conversion for HVAC, lighting, and industrial control systems, featuring tamper-resistant shrouds, steel mounting brackets, and UL/CSA certification. It provides 2.5VA power with a 240V input and delivers 10V at 0.250A, with voltage regulation within 15%. Its design includes side-by-side primaries and secondaries for low capacitive coupling, suitable for Class 2 applications. Compact and RoHS-compliant, it ensures safety and efficiency in commercial and industrial environments, meeting UL 5085 standards and incurring no fusing requirements.
TRIAD MAGNETICS TCT312E07AE Control Transformer Specifications:
- Maximum Power: 2.5VA
- Input: 240V, 50/60 Hz
- Output: 10V @ 0.250Amps
- Voltage Regulation: 15% TYP @ full load to no load
- Temperature Rise: <40°C TYP
- Hipot: 1500VAC — Input to Output, Input & Output to Core
- Construction: Three flange bobbin with side-by-side primaries and secondaries
- Connections: Input and output quick disconnect tabs (0.25 x 0.25 x 0.032 and 0.187 x 0.25 x 0.020)
- Dimensions: Compact size suitable for various control panels
- RoHS Compliance: Meets 2011/65/EU standards as of February 2005
- Agency Certification: UL (File E65390), cUL (File E65390), UL 5085-1 & 3, UL 5085-2 & 3 migration planned
- Safety Standards: Class 2 transformer, no fusing required

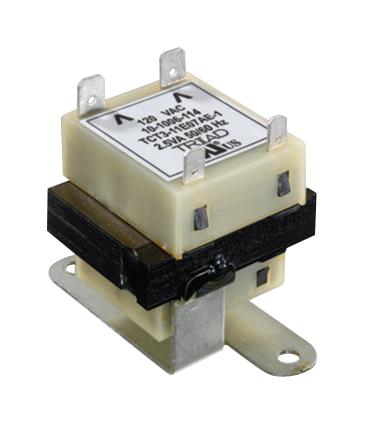

Buy the Triad 312E07AE – Reliable Control Transformer for Industrial Applications
Purchase the Triad TCT312E07AE control transformer online now to enhance your HVAC, lighting, or industrial control systems. This UL and CSA-certified transformer provides 2.5VA power with a 10V output, designed for safety and efficiency. Its compact, RoHS-compliant construction features easy-to-mount quick disconnects and low capacitive coupling. Ideal for demanding industrial environments, this transformer ensures reliable and safe power conversion, meeting all current standards for control applications. Order now for fast delivery and trusted performance.
Order your Triad Series TCT312E07AE control transformer today and ensure safe, reliable power for HVAC, lighting, and control systems.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS TCT312E07AE?
You can click on the BUY or RFQ button to purchase TCT312E07AE from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part TCT312E07AE?
You can download the TCT312E07AE datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of TCT312E07AE?
TRIAD MAGNETICS
