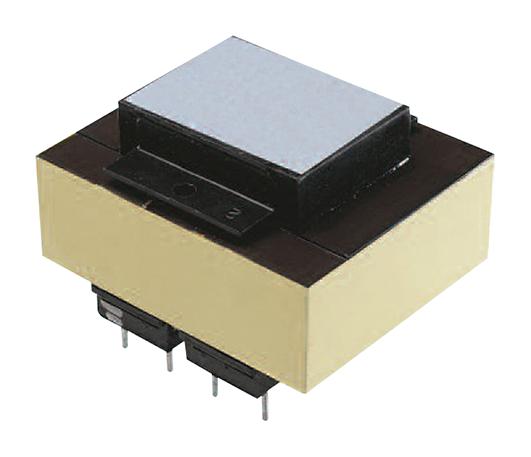

TRIAD MAGNETICS VPP103000 Power Transformer
The VPP 10-3000 transformer features dual bobbin construction with high-temperature insulation, designed for versatile electrical applications. It offers maximum power of 30VA, with input options of 230VAC or 115VAC, and output options of 10V CT at 3A or 5V at 6A. Its construction ensures safety and compliance with UL, CSA, and TUV standards, making it ideal for general purpose industrial and electronic applications. The transformer is RoHS compliant, compact, and suitable for both series and parallel connections in various systems.
TRIAD MAGNETICS VPP103000 Power Transformer Specifications:
- Maximum Power: 30.0VA
- Input: Series: 230VAC, 50/60Hz; Parallel: 115VAC, 50/60Hz
- Output: Series: 10.0V CT@ 3.00A; Parallel: 5.0V @ 6.0A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 30C TYP (45C MAX allowed)
- Insulation Resistance: 100MΩ
- Hipot: 4000VAC between primary to secondary and windings to core
- Construction: Dual bobbin with high-temperature insulated shroud
- Dimensions: 1.562 x 2.625 x 2.187 inches
- Mounting Holes: 0.156 inch diameter, 4 holes
- Weight: 1 lb
- Connections: Series and parallel wiring options with specified pin configurations
- RoHS Compliance: Meets 2011/65/EU standard as of February 2005
Buy the Triad Power Transformer – Reliable VPP103000 for Industrial Applications
Enhance your project with the Triad VPP103000 power transformer, designed for versatile applications with dual wiring options, safety approvals, and RoHS compliance. Its 30VA maximum power, high-temperature construction, and multiple connection configurations make it ideal for general purpose industrial, control panels, and electronic systems. Compact and easy to mount, this transformer ensures reliable power delivery, meeting UL, CSA, and TUV standards. Purchase online now to ensure a safe, compliant, and efficient power source for your equipment.
Order your Triad Series VPP103000 power transformer today and get dependable power supply for your industrial and electronic systems.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS VPP103000?
You can click on the BUY or RFQ button to purchase VPP103000 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part VPP103000?
You can download the VPP103000 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of VPP103000?
TRIAD MAGNETICS
