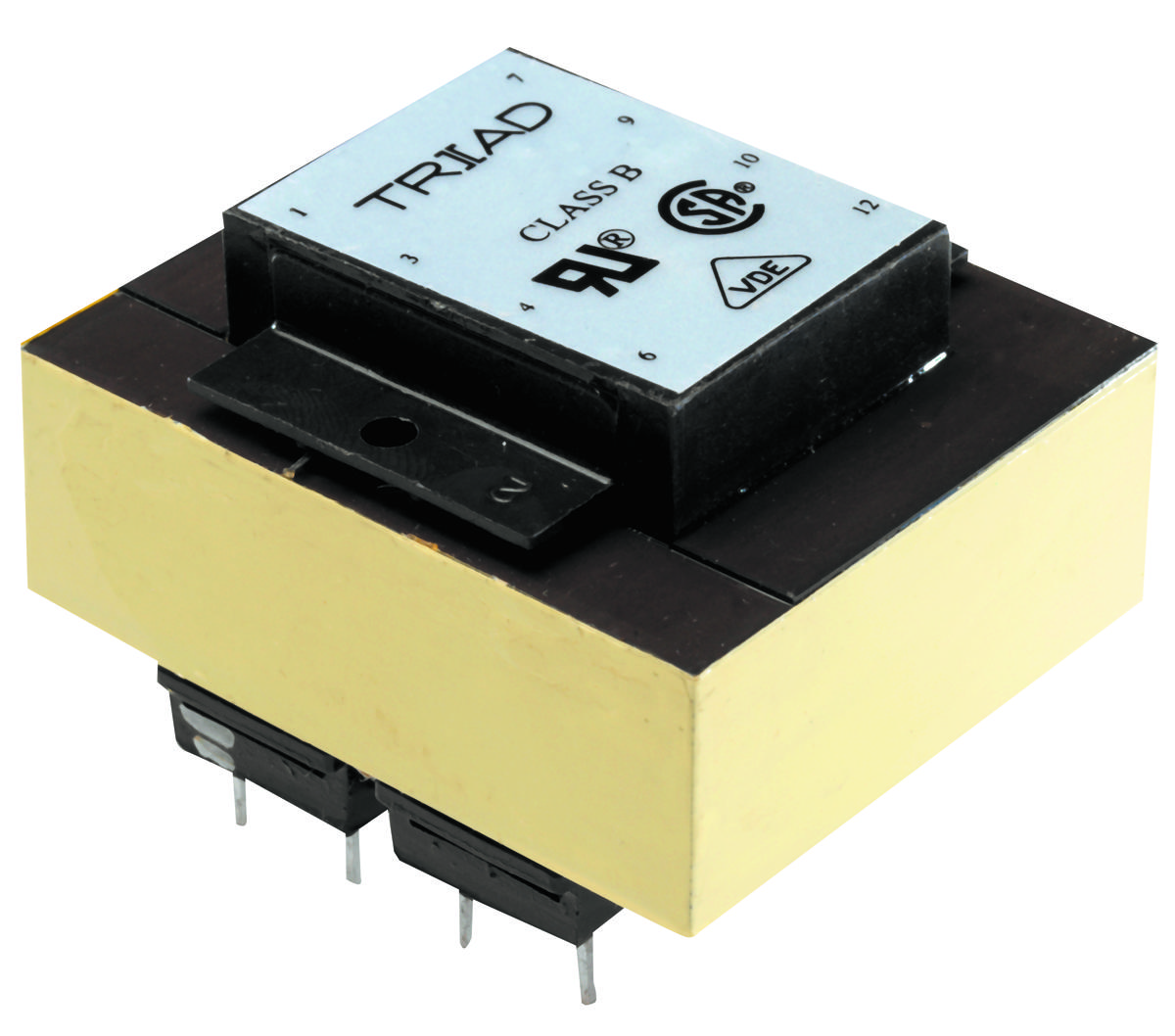

TRIAD MAGNETICS VPP36280 Power Transformer
This power transformer is designed for industrial and power management applications, providing versatile input and output configurations. It features dual bobbin construction with high-temperature materials exceeding UL flammability standards, ensuring safety and durability. With a maximum power capacity of 10.0VA, it operates at 230VAC or 115VAC depending on the configuration. The transformer offers output voltages of 36.0V CT or 18.0V, with a voltage regulation of 25% at full load. Compliance with UL, CSA, and TUV standards ensures reliable industrial performance.
TRIAD MAGNETICS VPP36280 Power Transformer Specifications:
- Maximum Power: 10.0VA
- Input: Series: 230VAC, 50/60Hz; Parallel: 115VAC, 50/60Hz
- Output: Series: 36.0V CT@ 0.28A; Parallel: 18.0V @ 0.56A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 30°C TYP (45°C MAX allowed)
- Insulation Resistance: 100MΩ
- Hipot: 4000VAC between primary and secondary windings and core
- Construction: Dual bobbin with high temperature insulating shroud
- Dimensions: 1.25 x 1.375 x 0.187 inches
- Mounting Holes: 0.112 inch diameter, 2.0 inches apart
- Weight: 0.53 lbs
- Connections: Series and parallel configurations via pin jumpers
- RoHS Compliance: Meets 2011/65/EU standards
- Certifications: UL, CSA, TUV
Buy the Triad Series Power Transformer: VPP36-280
Purchase your Triad Series Power Transformer VPP36-280 online today and enhance your industrial systems with dependable, UL and CSA certified power solutions. Featuring versatile input configurations of 230VAC or 115VAC, and output options of 36V CT or 18V, this transformer delivers up to 10VA of power. Its dual bobbin construction ensures safety and durability, meeting strict UL, CSA, and TUV specifications. Efficient, high-quality, and easy to install, it’s the ideal choice for automation and power management projects requiring reliable, long-lasting performance.
Order your Triad Series Power Transformer VPP36-280 today and ensure reliable power management for your industrial systems.
